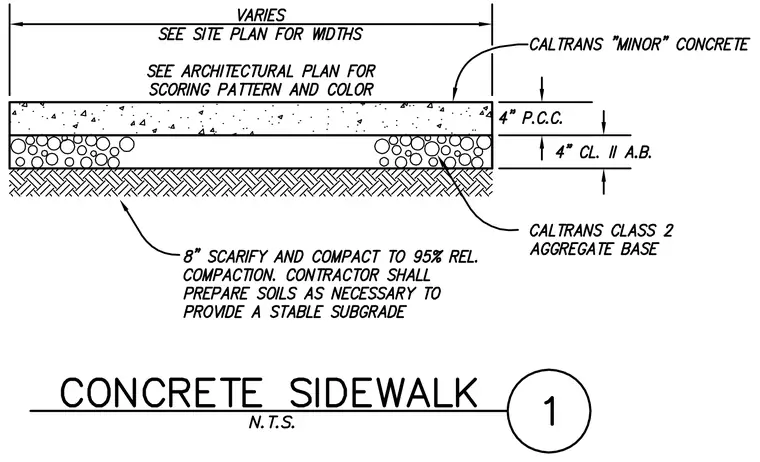

This concrete sidewalk section consists of a 4-inch Portland cement concrete layer using Caltrans minor concrete over a 4-inch Class 2 aggregate base. The subgrade requires eight inches of scarification and compaction to 95 percent relative compaction, with soils prepared as necessary to provide a stable foundation. Sidewalk width varies per the site plan, and the architectural plan dictates the scoring pattern and color.
