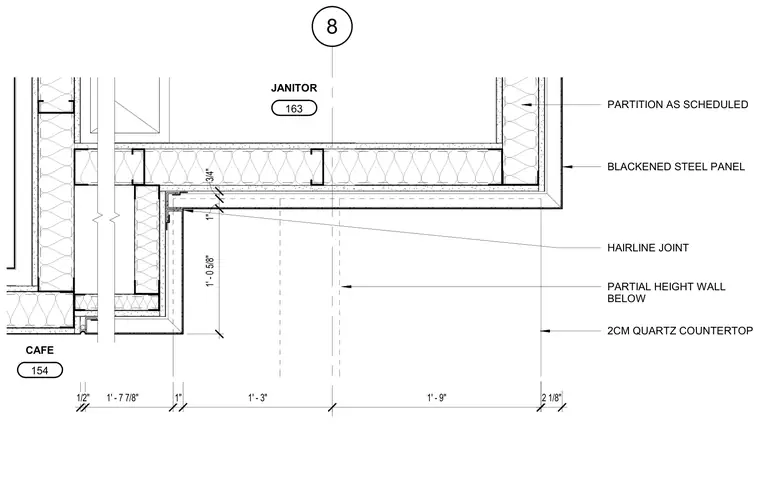

This interior plan detail shows the termination of a two-centimeter quartz countertop adjacent to a partial-height partition wall. The assembly features a blackened steel panel wrapping the exterior face with a hairline joint at the corner. Framing is constructed with metal studs per the partition schedule.
8 1/2" 1' - 7 7/8" 1" 1' - 3" 1' - 9" JANITOR 163 CAFE 154 2 1/8" 1' - 0 5/8" 1" 3/4" PARTITION AS SCHEDULED BLACKENED STEEL PANEL PARTIAL HEIGHT WALL BELOW 2CM QUARTZ COUNTERTOP HAIRLINE JOINT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
