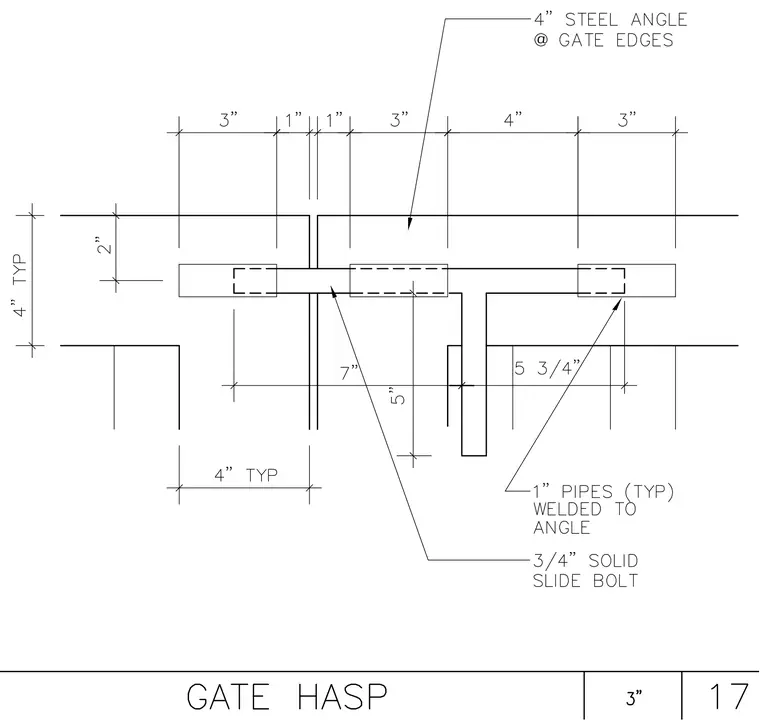

A three-quarter-inch solid slide bolt passes through one-inch pipes welded typically to four-inch steel angles located at the gate edges. The assembly is dimensioned with specific layout spacings including three-inch, one-inch, four-inch, and seven-inch intervals, maintaining a typical four-inch clearance along the gate framing. The design utilizes standard steel angle profiles and pipe guides to secure the gate latch mechanism.
