Thermoplastic polyolefin membrane and bonding adhesive extend continuously up the vertical wall and over blocking. A quarter-inch Dens-Deck roof board overlays the wood deck supported by bar joists. Three times wood cleats are fastened to the bar joists, and two-by wood joists are secured with fasteners and heavy-duty seam plates per the roof manufacturer. Welded splices and lap sealant complete the weatherproofing at membrane joints.

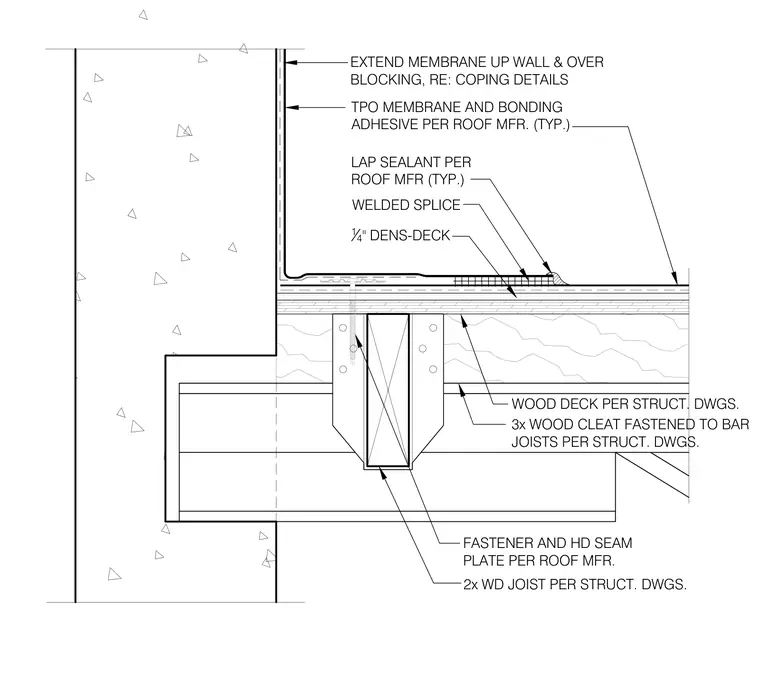

EXTEND MEMBRANE UP WALL & OVER BLOCKING, RE: COPING DETAILS WELDED SPLICE LAP SEALANT PER ROOF MFR (TYP.) FASTENER AND HD SEAM PLATE PER ROOF MFR. TPO MEMBRANE AND BONDING ADHESIVE PER ROOF MFR. (TYP.) WOOD DECK PER STRUCT. DWGS. 3x WOOD CLEAT FASTENED TO BAR JOISTS PER STRUCT. DWGS. 2x WD JOIST PER STRUCT. DWGS. 14 " DENS-DECK
