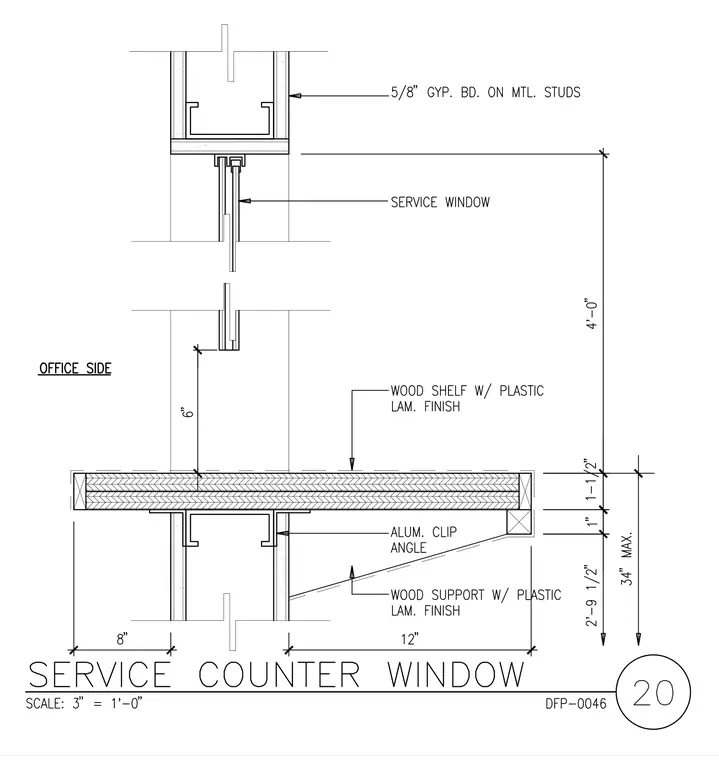

This interior partition detail shows a service window assembly integrated into a wall framed with metal studs and finished with five-eighths inch gypsum board. The service window is positioned four feet above a service counter that consists of a wood shelf with a plastic laminate finish. The counter is supported by a wood framework with matching plastic laminate and is anchored with aluminum clip angles. Dimensional callouts indicate an overall counter height of thirty-four inches maximum, with counter overhangs and clearances detailed for office side access.
