A-KBY6G — Clearance At Lavatory - Section 606

Architectural · A-KBY6G

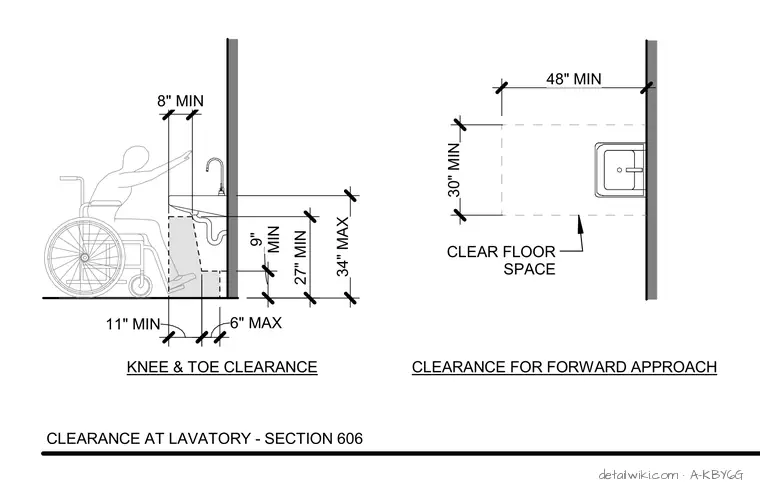

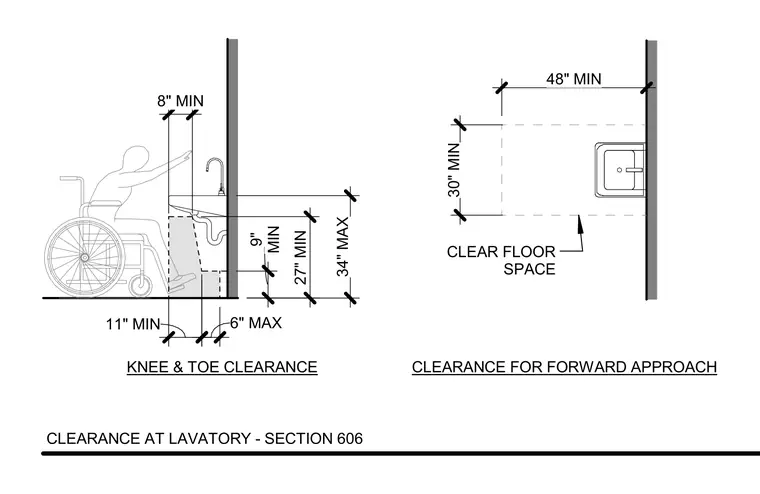

Clearance At Lavatory - Section 606

Units: imperial
Sheet: A9.50
Discipline: Architectural

Elements

Floors / Slabs Millwork / Casework

Text on the drawing

CLEARANCE AT LAVATORY - SECTION 606 30" MIN 48" MIN 11" MIN 6" MAX MIN 9" 34" MAX 27" MIN 8" MIN KNEE & TOE CLEARANCE CLEARANCE FOR FORWARD APPROACH CLEAR FLOOR SPACE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
