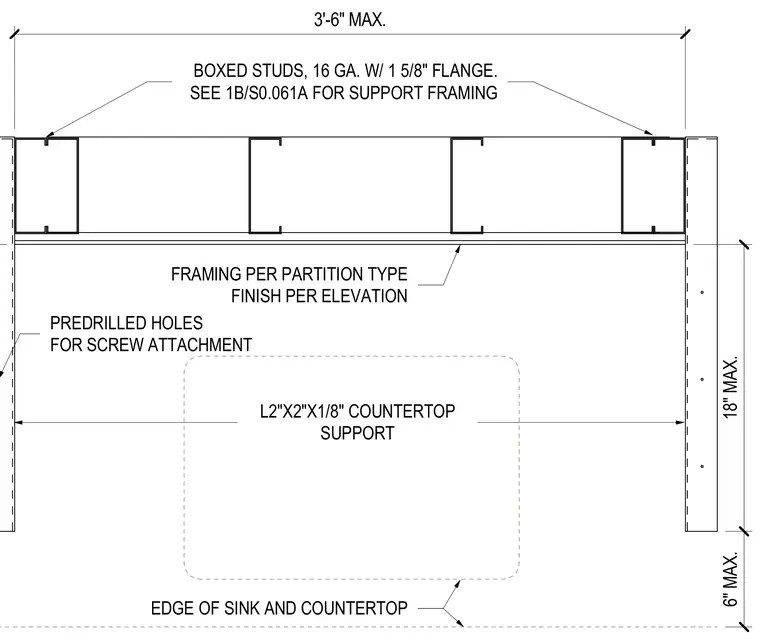

A cantilevered lavatory countertop is supported by 2x2x1/8-inch steel angles anchored to boxed 16-gauge metal studs with a 1-5/8-inch flange. The countertop support framing spans a maximum of 3 feet 6 inches with predrilled holes for screw attachment of the millwork. The assembly coordinates with partition framing types and finish elevations as specified.
3'-6" MAX. L2"X2"X1/8" COUNTERTOP SUPPORT FRAMING PER PARTITION TYPE FINISH PER ELEVATION BOXED STUDS, 16 GA. W/ 1 5/8" FLANGE. SEE 1B/S0.061A FOR SUPPORT FRAMING 6" MAX. 18" MAX. EDGE OF SINK AND COUNTERTOP PREDRILLED HOLES FOR SCREW ATTACHMENT
