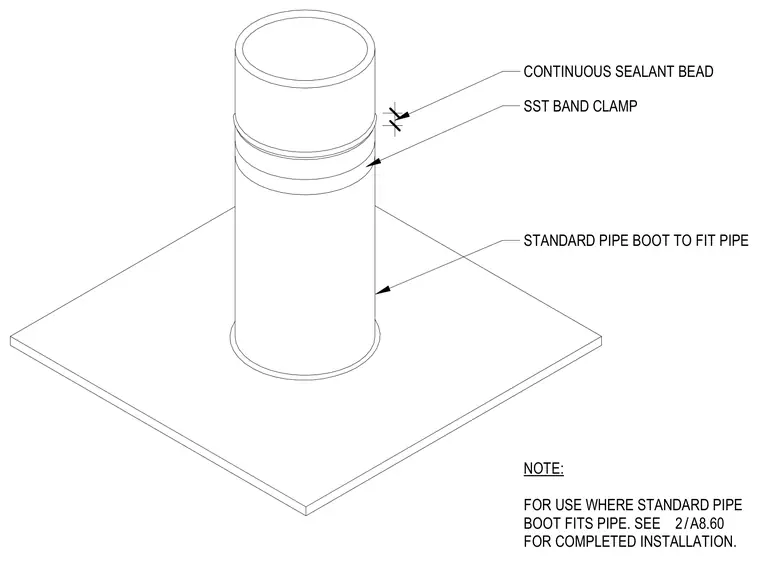

A standard pipe boot fits snugly over the pipe penetration and is secured at the top with a stainless steel band clamp. A continuous sealant bead is applied directly above the clamp to ensure a watertight seal. This installation is used where standard pipe boots fit the pipe penetration.
CONTINUOUS SEALANT BEAD SST BAND CLAMP STANDARD PIPE BOOT TO FIT PIPE NOTE: FOR USE WHERE STANDARD PIPE BOOT FITS PIPE. SEE FOR COMPLETED INSTALLATION. / 2 A8.60
