Architectural · A-KBV2B

Roof - West Slab Edge At Guardrail

Materials

Aluminum Cold-formed Steel Composite Metal (misc.)Steel Timber / Wood

Elements

Connections / Plates Decks Facades / Cladding Floors / Slabs Insulation Parapets Railings / Guards Roofs Waterproofing / Flashing Windows

Connections

Deck Attachment HSS Connection Rebar Splice / Development Shear Stud / Composite

About this detail

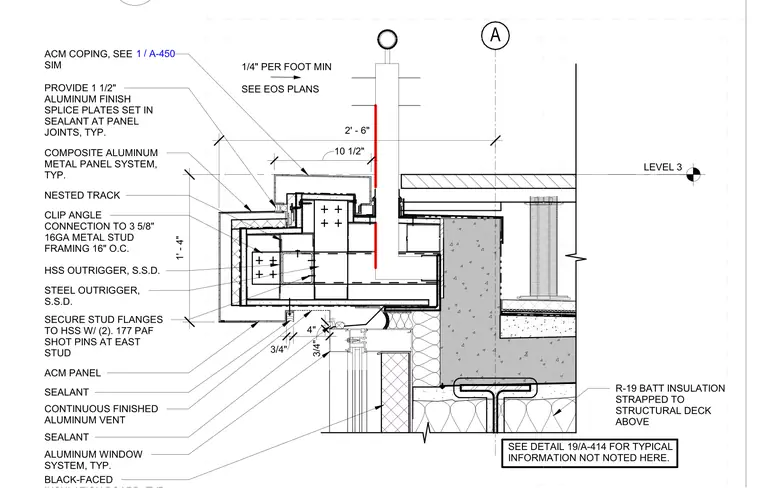

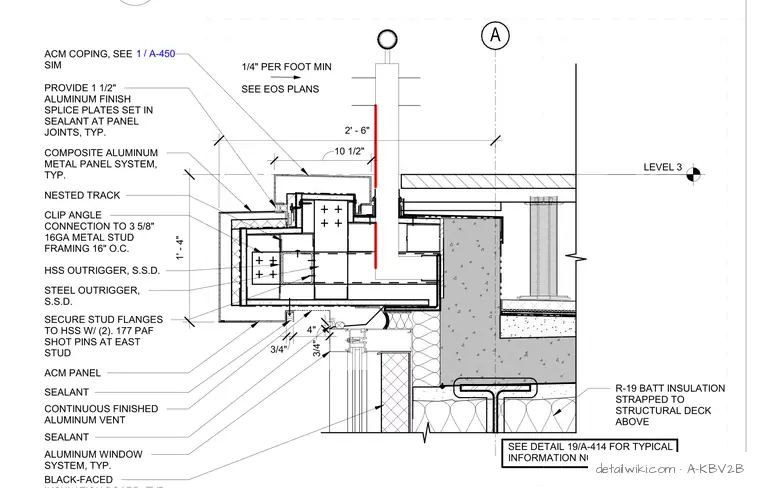

Roof slab edge assembly integrating a guardrail, a black-faced aluminum window system, and a composite aluminum metal panel system. The structural framing incorporates hollow structural section and steel outriggers connected to three-and-five-eighths-inch sixteen-gauge metal studs at sixteen inches on center, secured with two one-hundred-seventy-seven powder-actuated fasteners. The exterior features aluminum finish splice plates set in sealant at panel joints, a continuous finished aluminum vent, and an aluminum composite material coping. R-nineteen batt insulation is strapped to the structural deck above, and sealant is applied at all appropriate weathering interfaces.
