An exterior flat seal with a mill finish aluminum base and forty-five mil EPDM water barrier accommodates fifty percent movement between an existing masonry wall and a concrete masonry unit wall. The assembly includes a twenty-four-inch water barrier designation WB045 and a seven-eighth-inch cement plaster over self-furring metal lath with a smooth finish.

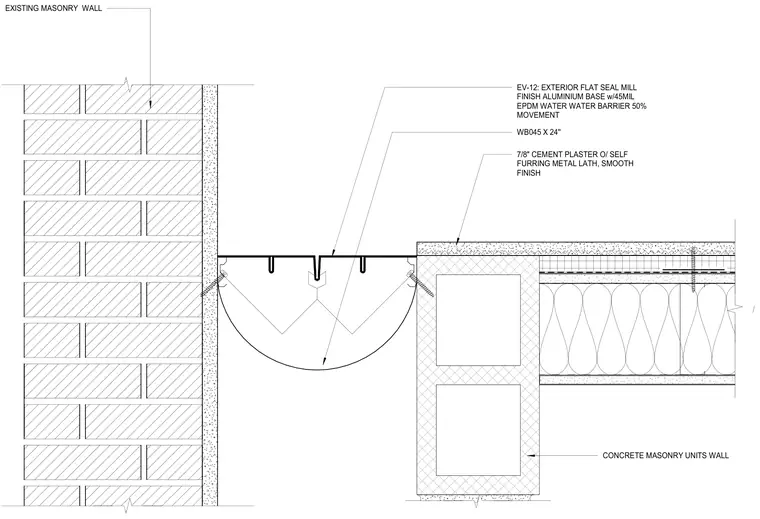

EV-12: EXTERIOR FLAT SEAL MILL FINISH ALUMINIUM BASE w/45MIL EPDM WATER WATER BARRIER 50% MOVEMENT EXISTING MASONRY WALL CONCRETE MASONRY UNITS WALL WB045 X 24'' 7/8" CEMENT PLASTER O/ SELF FURRING METAL LATH, SMOOTH FINISH
