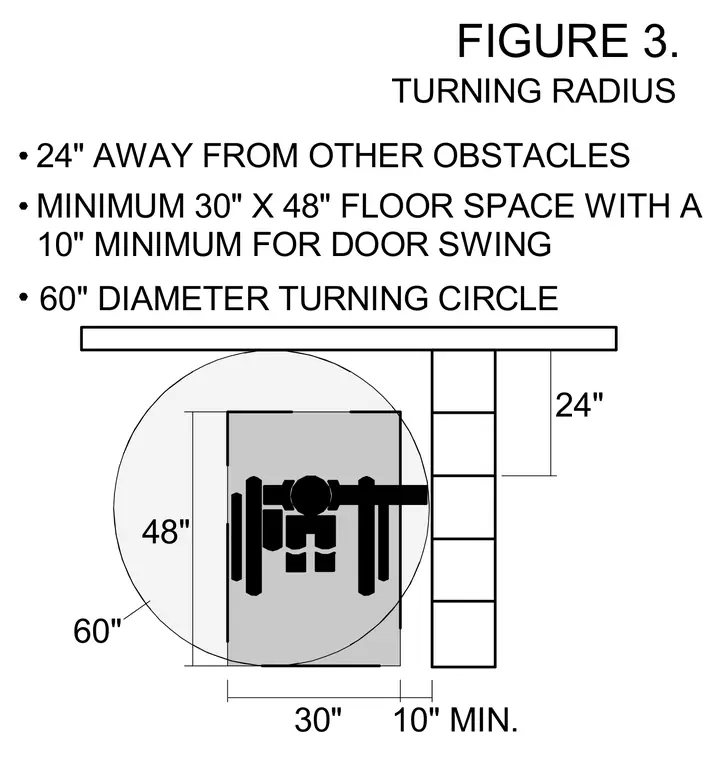

An accessible layout showing a sixty inch diameter turning circle with a minimum thirty by forty-eight inch clear floor space. The space requires a twenty-four inch clearance from other obstacles and a ten inch minimum clearance for door swings.
24" AWAY FROM OTHER OBSTACLES MINIMUM 30" X 48" FLOOR SPACE WITH A 10" MINIMUM FOR DOOR SWING FIGURE 3. TURNING RADIUS 48" 60" 24" 30" 10" MIN. 60" DIAMETER TURNING CIRCLE
