Architectural · A-KB35T

Ceiling Panel Geometry and Elevation Layout

Elements

About this detail

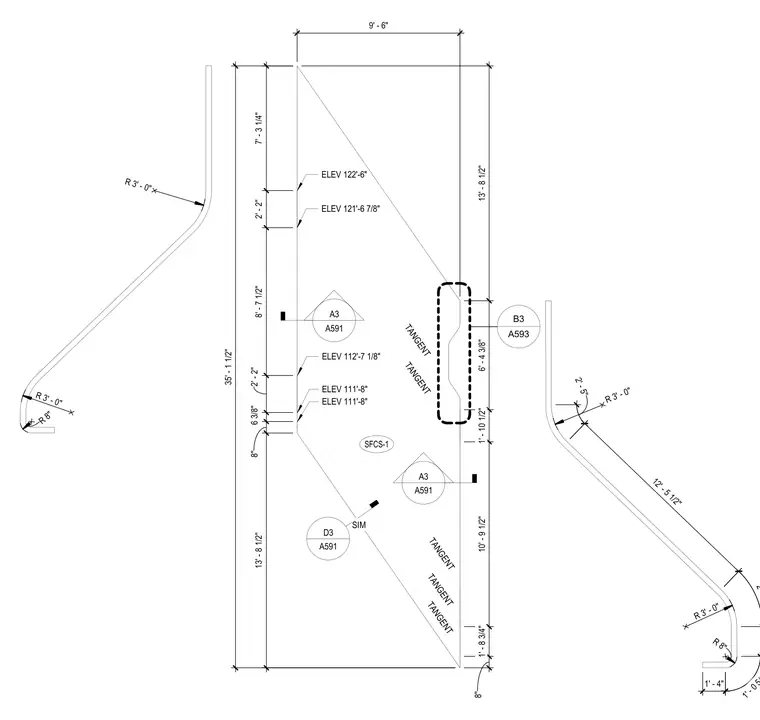

The drawing shows a complex curved ceiling panel layout with multiple elevation markers and tangent points. Dimensions indicate overall widths of 9 feet 6 inches and heights up to 35 feet 1 and 1/2 inches, along with specific radii of 3 feet and 8 inches. Elevation notes specify key heights including 111 feet 8 inches, 112 feet 7 and 1/8 inches, 121 feet 6 and 7/8 inches, and 122 feet 6 inches. Reference bubbles and callouts such as SFCS-1, A3, A591, B3, and D3 coordinate the panel geometry.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
