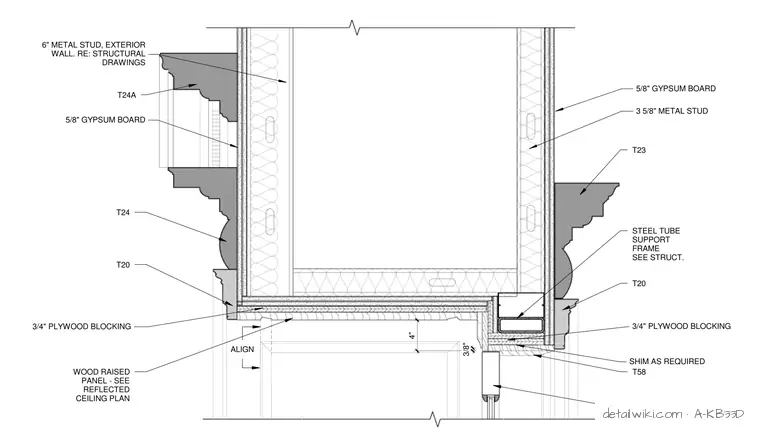

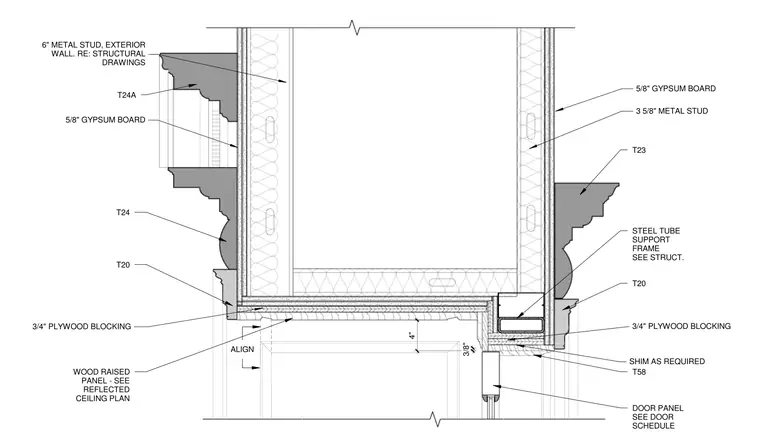

The door head detail is framed with a steel tube support frame referenced to structural drawings and lined with three-quarter-inch plywood blocking. The wall assembly consists of three-and-five-eighth-inch and six-inch cold-formed metal studs faced with five-eighth-inch gypsum board. Wood trim and raised wood panels are installed at the header with shims as required for alignment. A door panel is hung below, coordinated with the door schedule and reflected ceiling plan.
4" WOOD RAISED PANEL - SEE REFLECTED CEILING PLAN 5/8" GYPSUM BOARD 3 5/8" METAL STUD 5/8" GYPSUM BOARD 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS DOOR PANEL SEE DOOR SCHEDULE T23 T20 T20 T24 T24A 3/4" PLYWOOD BLOCKING 3/4" PLYWOOD BLOCKING STEEL TUBE SUPPORT FRAME SEE STRUCT. T58 SHIM AS REQUIRED ALIGN 3/8"
