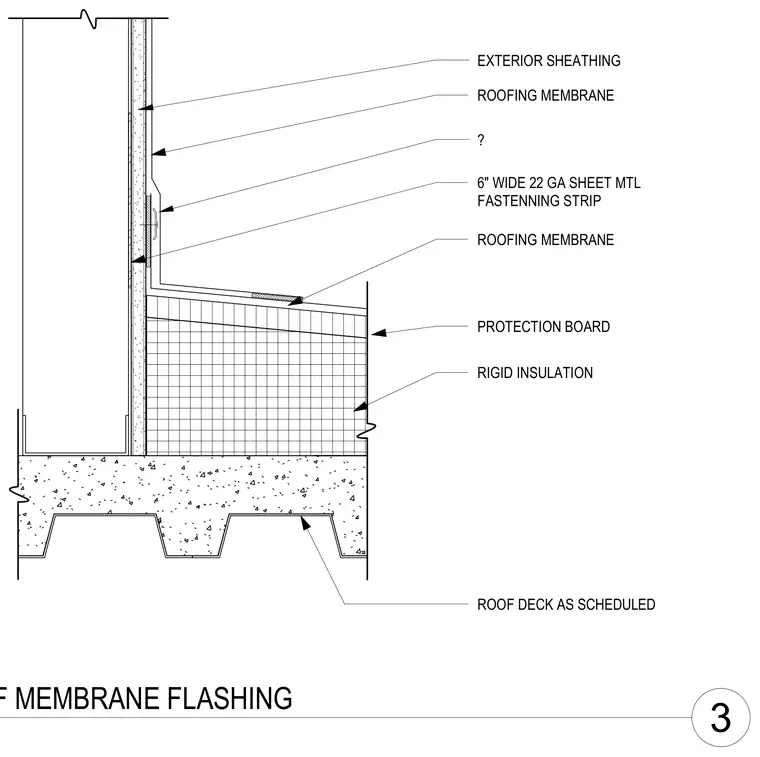

Roof membrane flashing extends upward against the exterior wall assembly over rigid insulation and a protection board supported by the roof deck. A six-inch wide twenty-two gauge sheet metal fastening strip secures the vertical termination of the roofing membrane. Exterior wall sheathing wraps the vertical transition above the membrane flashing.
ROOFING MEMBRANE ROOFING MEMBRANE PROTECTION BOARD RIGID INSULATION ROOF DECK AS SCHEDULED EXTERIOR SHEATHING ? 6" WIDE 22 GA SHEET MTL FASTENNING STRIP 3 ROOF MEMBRANE FLASHING
