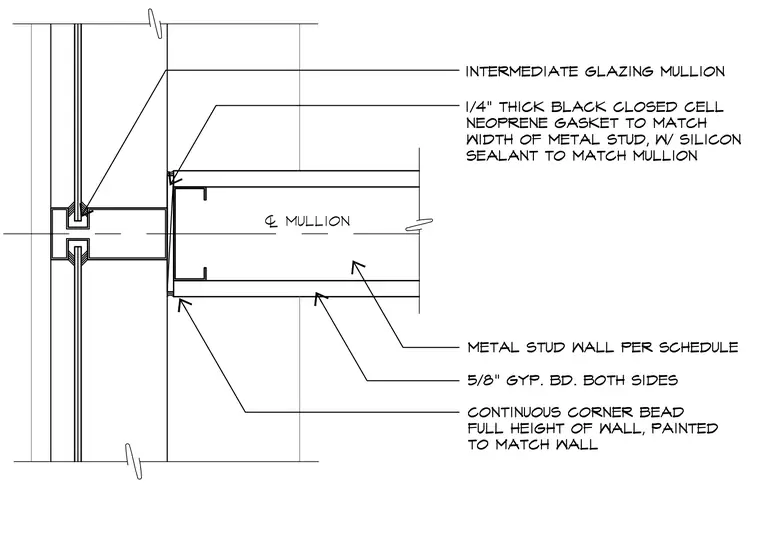

A metal stud wall per schedule terminates at an intermediate glazing mullion. A one-quarter-inch thick black closed cell neoprene gasket matches the width of the metal stud and includes silicone sealant to match the mullion. Five-eighths-inch gypsum board is applied to both sides of the metal stud wall. A continuous corner bead runs the full height of the wall and is painted to match.
