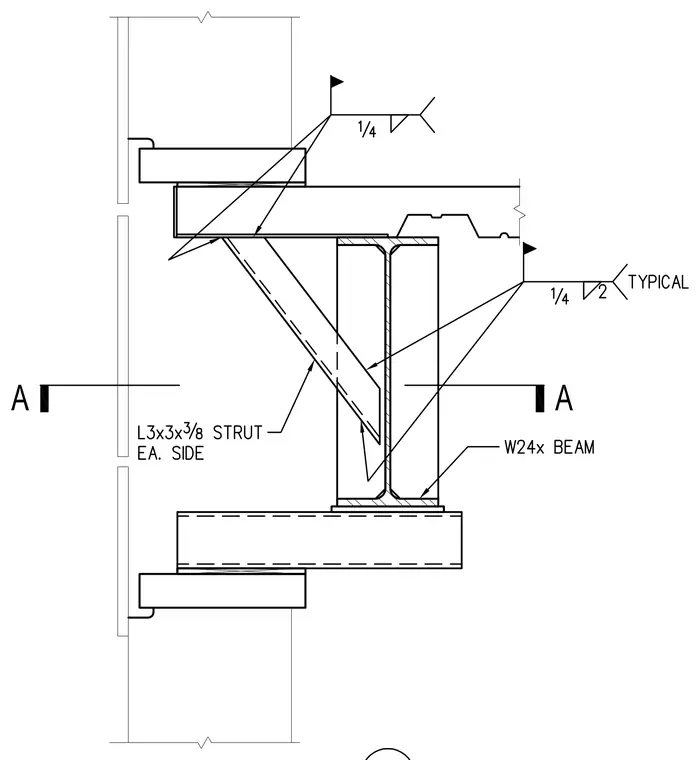

An angle strut of size L3x3x3/8 is positioned on each side and connected to a W24x beam with a one-quarter-inch fillet weld typical. The assembly includes structural steel framing members joined with field welds as indicated by the weld symbols and flags. The brace provides lateral support or transfer loads relative to the main beam section.
