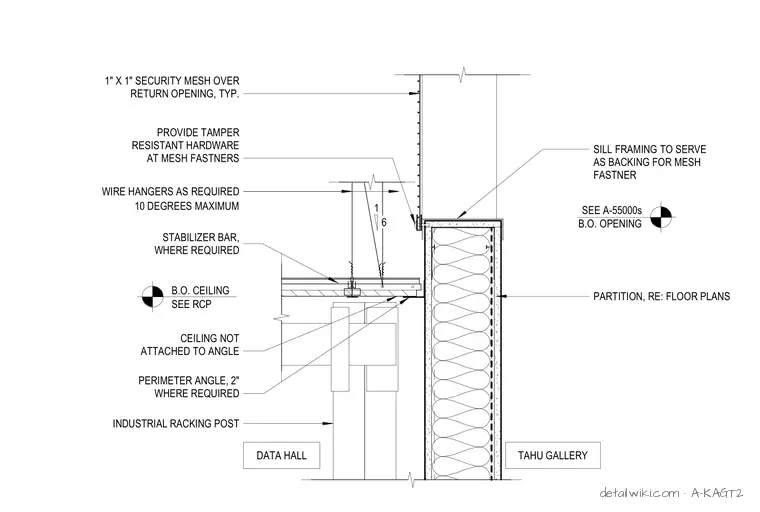

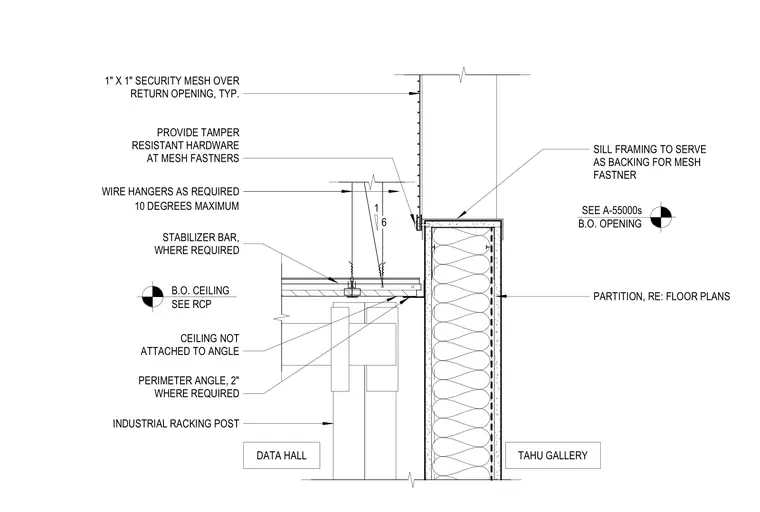

A partition wall separates the Tahu Gallery from the Data Hall, with sill framing at the top of the partition providing backing for the security mesh. One-inch by one-inch security mesh covers the return opening, secured with tamper-resistant hardware at all fasteners. The suspended ceiling system incorporates a two-inch perimeter angle where required, with the ceiling unattached to the angle to accommodate movement. Wire hangers are installed at a maximum ten-degree angle, and a stabilizer bar supports the ceiling grid near the industrial racking posts where required.
Text on the drawing
TAHU GALLERY DATA HALL INDUSTRIAL RACKING POST PARTITION, RE: FLOOR PLANS SILL FRAMING TO SERVE AS BACKING FOR MESH FASTNER B.O. CEILING SEE RCP PERIMETER ANGLE, 2" WHERE REQUIRED STABILIZER BAR, WHERE REQUIRED CEILING NOT ATTACHED TO ANGLE 10 DEGREES MAXIMUM WIRE HANGERS AS REQUIRED B.O. OPENING SEE A-55000s 1" X 1" SECURITY MESH OVER RETURN OPENING, TYP. PROVIDE TAMPER RESISTANT HARDWARE AT MESH FASTNERS 1 6
