Casework hardware placement details show standard dimensions for pulls, handles, and locks on drawers and upper cabinets. Drawers feature centered pulls with equal spacing from the centerline and two inches from edges unless noted otherwise. Upper cabinets incorporate pulls spaced two inches from the centerline with specific vertical clearances. Cabinet locks are indicated where required by project specifications.

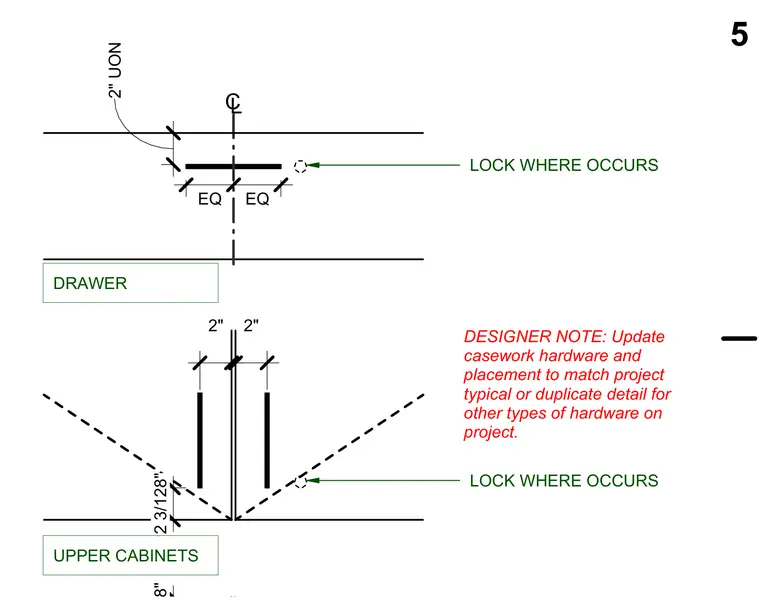

UPPER CABINETS 2 3/128" 2" 2" DRAWER 2" UON EQ EQ LOCK WHERE OCCURS LOCK WHERE OCCURS DESIGNER NOTE: Update casework hardware and placement to match project typical or duplicate detail for other types of hardware on project. CL 5 5
