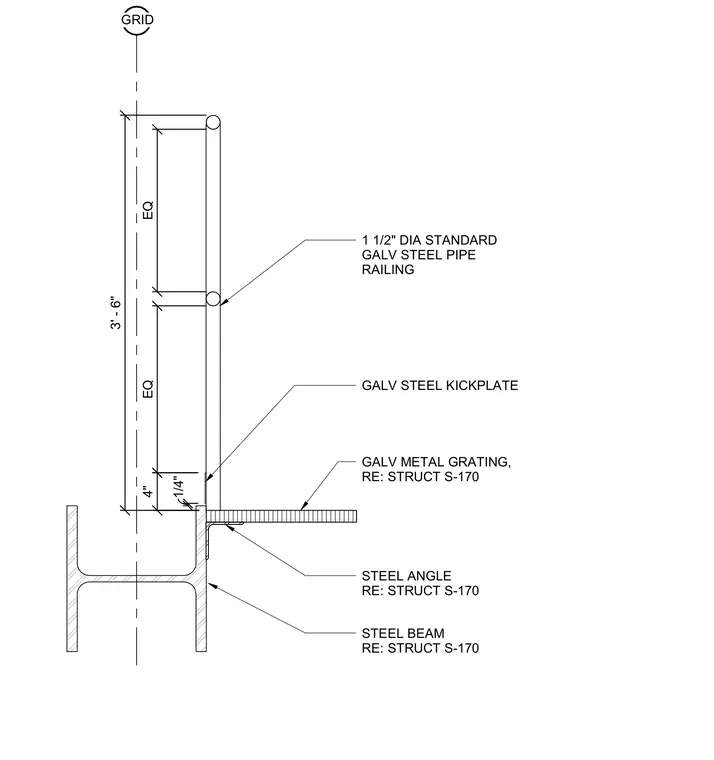

A 1 1/2-inch diameter standard galvanized steel pipe railing stands at a total height of 3 feet 6 inches above the structural framing. A galvanized steel kickplate is positioned at the base of the railing adjacent to a galvanized metal grating. The grating bears on a steel angle connected to a structural steel beam, with reference made to structural sheet S-170 for framing details.
GRID GALV STEEL KICKPLATE GALV METAL GRATING, RE: STRUCT S-170 1 1/2" DIA STANDARD GALV STEEL PIPE RAILING 4" EQ EQ 3' - 6" 1/4" STEEL BEAM RE: STRUCT S-170 STEEL ANGLE RE: STRUCT S-170
