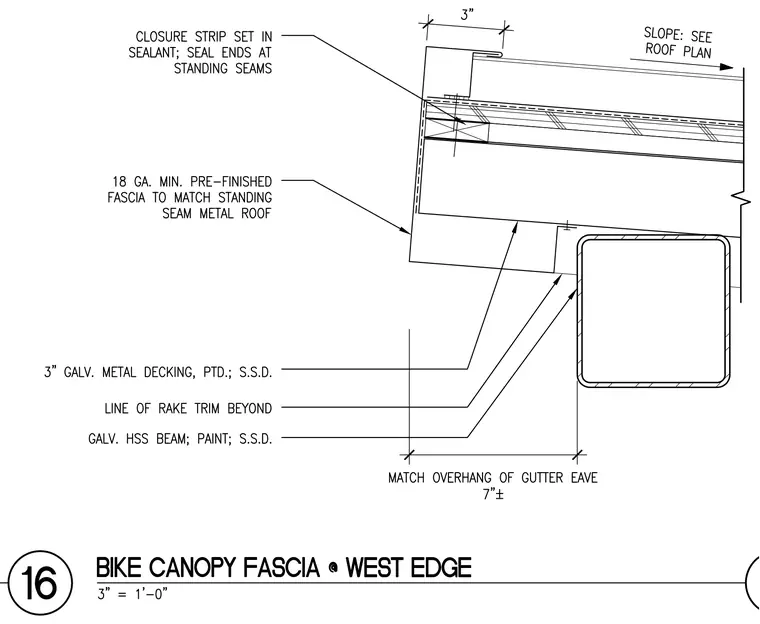

An 18 gauge minimum pre-finished fascia matches the standing seam metal roof and terminates above a galvanized hollow structural section beam. A closure strip is set in sealant with sealed ends at the standing seams. The roof rests on 3-inch galvanized painted metal decking spanning per structural drawings.
