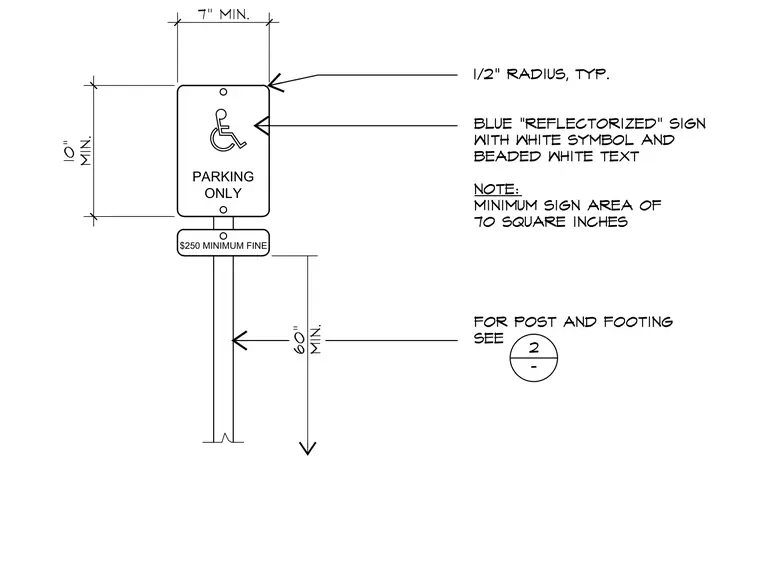

An accessible parking sign features a blue reflectorized sign panel with a white international symbol of accessibility, beaded white text reading PARKING ONLY, and an attached auxiliary sign reading $250 MINIMUM FINE. The sign dimensions require a minimum width of 7 inches, a minimum height of 10 inches, a minimum sign area of 70 square inches, and a 1/2 inch typical corner radius. The bottom of the sign is mounted at a minimum height of 60 inches above the ground. The post and footing details are referenced to another sheet.
