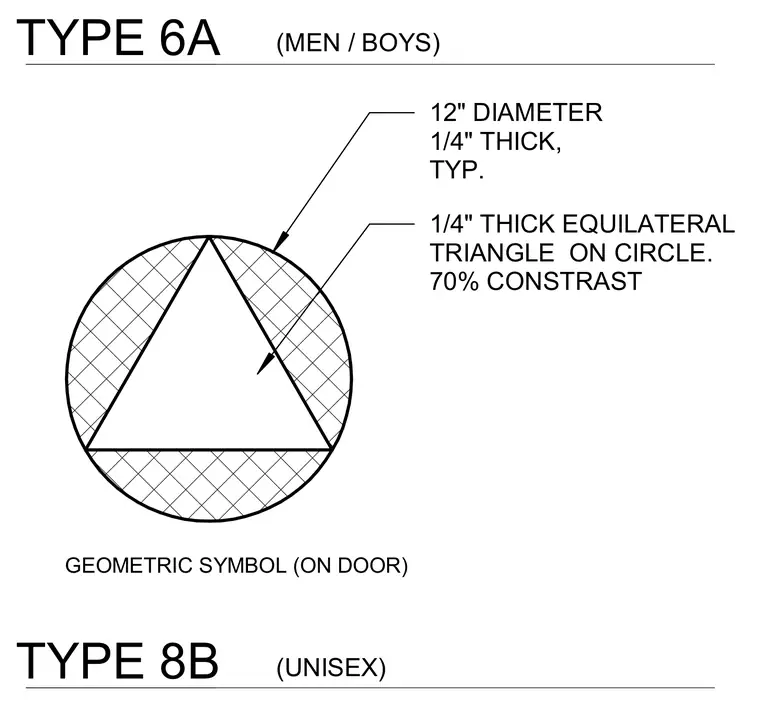

A twelve-inch diameter circular sign features a quarter-inch thick equilateral triangle centered inside the circle with a seventy percent contrast requirement. The tactile geometric symbol is mounted on the restroom door for accessibility identification. The sign assembly consists of a quarter-inch thick plate construction specified as typical.
TYPE 6A TYPE 8B 1/4" THICK EQUILATERAL TRIANGLE ON CIRCLE. 70% CONSTRAST 12" DIAMETER 1/4" THICK, TYP. (UNISEX) GEOMETRIC SYMBOL (ON DOOR) (MEN / BOYS)
