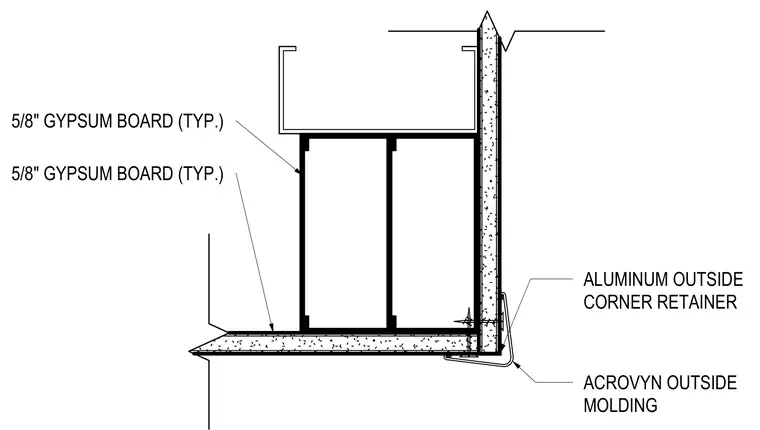

An aluminum outside corner retainer is fastened to the exterior corner of a framed wall faced with five-eighths-inch gypsum board typically. An Acrovyn outside molding snaps over the retainer to protect the corner from impact. The gypsum board extends continuously around the corner assembly.
ACROVYN OUTSIDE MOLDING 5/8" GYPSUM BOARD (TYP.) ALUMINUM OUTSIDE CORNER RETAINER 5/8" GYPSUM BOARD (TYP.)
