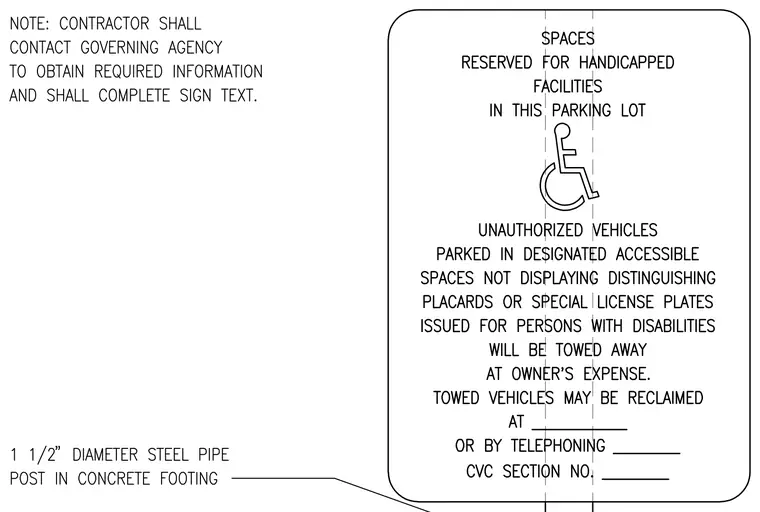

An accessible parking sign is mounted on a 1 1/2-inch diameter steel pipe post supported by a concrete footing. The sign panel features the international symbol of accessibility and standard towing notification text regarding unauthorized vehicles in designated spaces. A general note instructs the contractor to contact the governing agency for required sign text and information.
