Architectural · A-K9P9J

Detail

Units: imperial
Discipline: Architectural

Materials

Steel

Elements

Beams

Text on the drawing

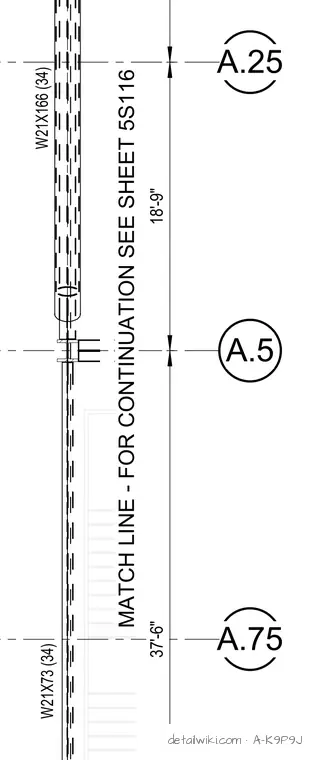

A.5 A.25 A.75 W21X166 (34) W21X73 (34) 37'-6" 18'-9" MATCH LINE - FOR CONTINUATION SEE SHEET 5S116
