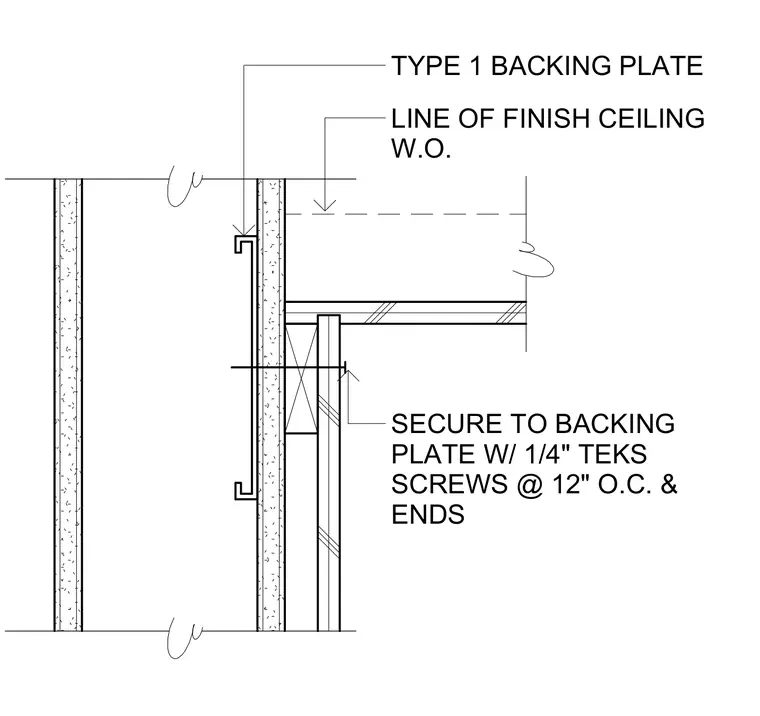

A Type 1 backing plate is installed within the wall assembly to align with the finish ceiling line. Framing members are secured to the backing plate using one-quarter-inch Teks screws spaced at twelve inches on center and at the ends.
TYPE 1 BACKING PLATE LINE OF FINISH CEILING W.O. SECURE TO BACKING PLATE W/ 1/4" TEKS SCREWS @ 12" O.C. & ENDS
