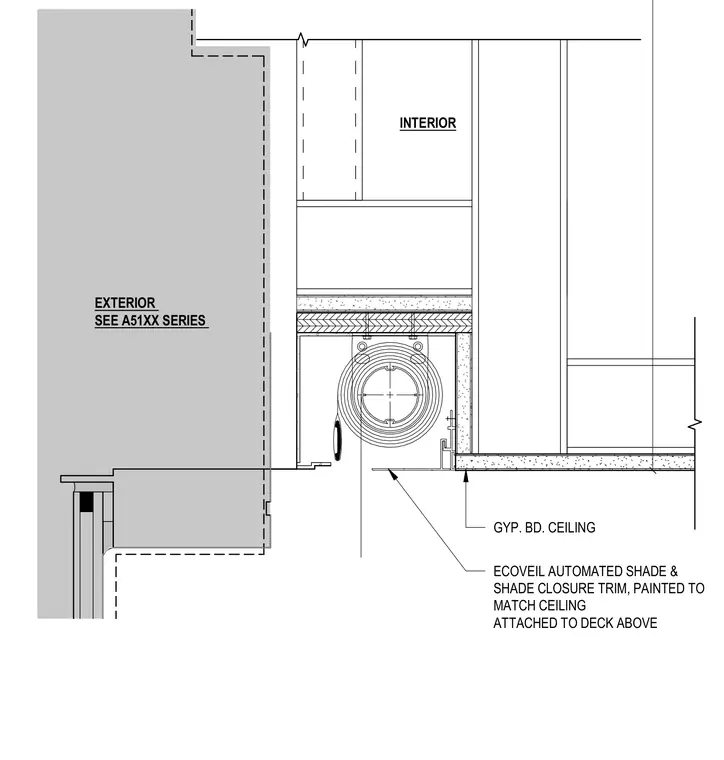

An automated shading system and shade closure trim are integrated into a recessed pocket attached directly to the deck above. The shade pocket interfaces with a gypsum board ceiling on the interior side and aligns with the exterior curtain wall assembly.
INTERIOR EXTERIOR SEE A51XX SERIES ECOVEIL AUTOMATED SHADE & SHADE CLOSURE TRIM, PAINTED TO MATCH CEILING ATTACHED TO DECK ABOVE GYP. BD. CEILING
