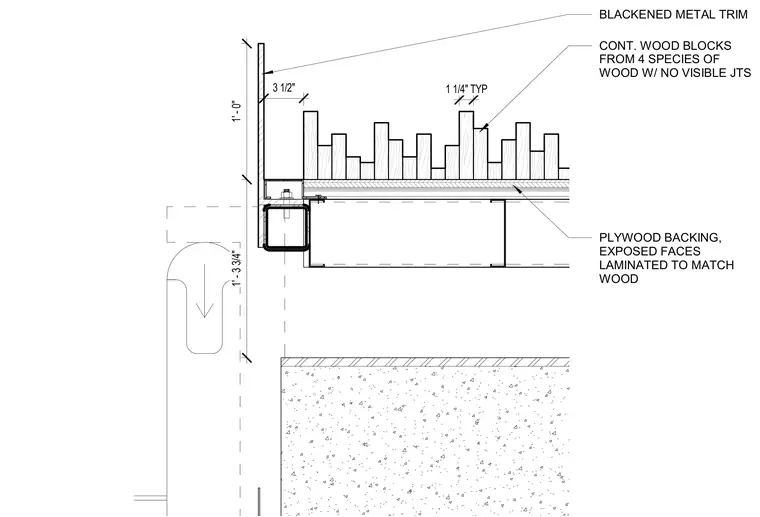

Continuous wood blocks are arranged in varying heights across a plywood backing with exposed faces laminated to match wood and no visible joints. A blackened metal trim piece forms the frame edge, anchored above a hollow structural section and steel framing adjacent to a concrete elevator shaft wall. The assembly is dimensioned with a one-foot-zero-inch height for the trim and three-and-a-half-inch backing thickness, with typical one-quarter-inch spacing between wood elements.
1 1/4" TYP 3 1/2" PLYWOOD BACKING, EXPOSED FACES LAMINATED TO MATCH WOOD CONT. WOOD BLOCKS FROM 4 SPECIES OF WOOD W/ NO VISIBLE JTS BLACKENED METAL TRIM 1' - 0" 1' - 3 3/4"
