Parking Structure Keynotes and Partial Elevation

Materials

Elements

Walls Curtain Walls Facades / Cladding Parapets Floors / Slabs Foundations / Footings Waterproofing / Flashing

About this detail

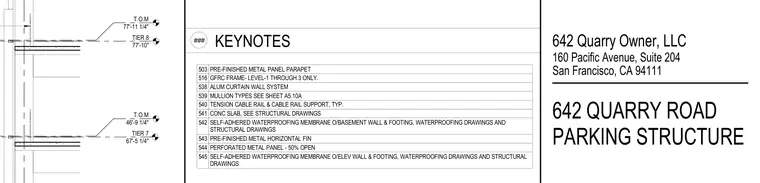

A keynotes schedule accompanies a partial vertical elevation of a parking structure. Pre-finished metal panel parapets, GFRC frames, aluminum curtain wall systems, tension cable railings, concrete slabs, and self-adhered waterproofing membranes comprise the scheduled items. Level and tier elevations are marked, including Tier 7 at 67'-5 1/4" and Tier 8 at 77'-10", along with top of masonry markers. Project title block information identifies the 642 Quarry Road Parking Structure in San Francisco.
