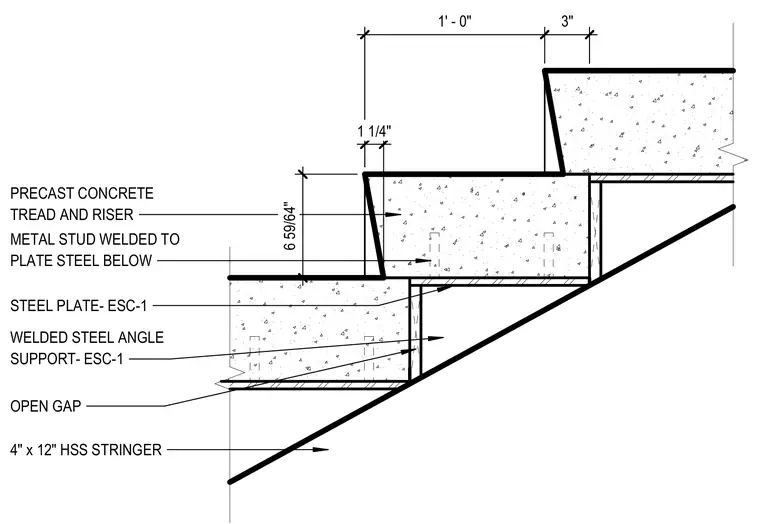

Precast concrete treads and risers are supported by a welded steel angle and ESC-1 steel plate bearing on a 4-inch by 12-inch hollow structural section stringer. Metal studs are cast into the precast concrete and welded to the steel plate below. An open gap is maintained between assembly components.
WELDED STEEL ANGLE SUPPORT- ESC-1 STEEL PLATE- ESC-1 OPEN GAP PRECAST CONCRETE TREAD AND RISER METAL STUD WELDED TO PLATE STEEL BELOW 1 ' - 0 " 3 " 6 5 9 / 6 4 " 1 1 / 4 " 4" x 12" HSS STRINGER
