Architectural · A-K8YD5

Stair Intermediate Landing and Guardrail at Exterior Wall

Materials

Elements

Beams Walls Partitions Stairs Railings / Guards Floors / Slabs

About this detail

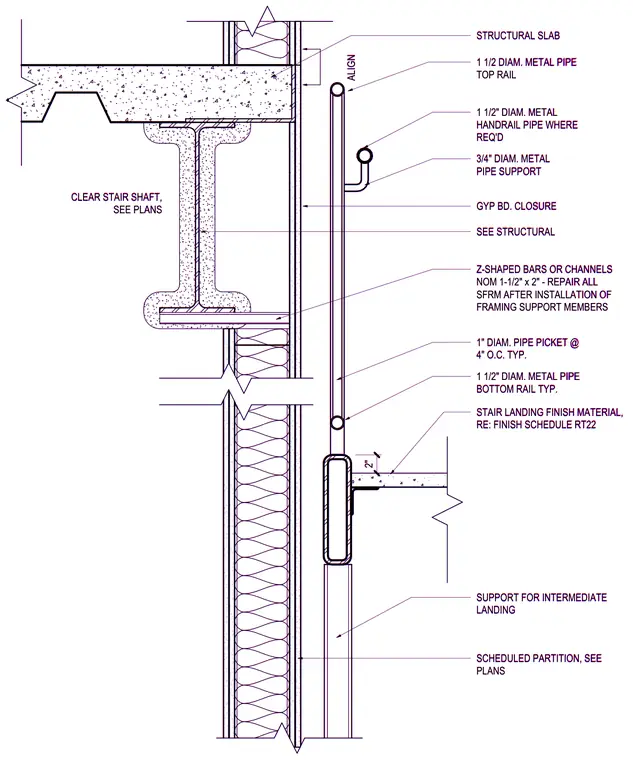

An interior stair intermediate landing and guardrail is located adjacent to an exterior wall and structural steel beam. A two-inch structural slab for the intermediate landing ties into a support member, finished per schedule RT22. The guardrail assembly features a 1-1/2-inch diameter metal pipe top rail, an optional 1-1/2-inch diameter metal handrail pipe on a 3/4-inch diameter metal pipe support, and a 1-1/2-inch diameter metal pipe bottom rail. One-inch diameter pipe pickets are spaced at four inches on center typically. Gypsum board closures are attached using nominal 1-1/2-inch by 2-inch Z-shaped bars or channels, requiring the repair of all sprayed fire-resistive material after framing installation.
