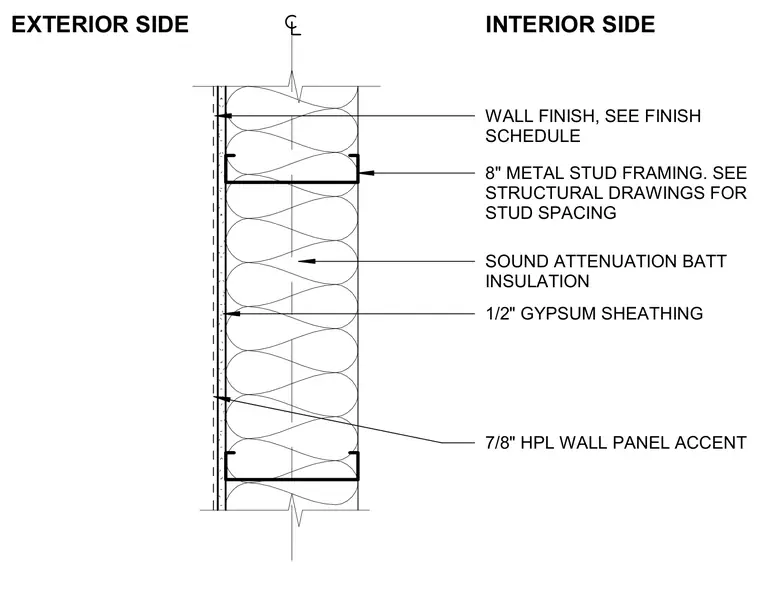

An interior wall assembly features 8-inch metal stud framing with stud spacing sized per structural drawings. The exterior side is faced with one-half-inch gypsum sheathing and a 7/8-inch high-pressure laminate wall panel accent. Sound attenuation batt insulation fills the framing cavity. The interior side receives a wall finish specified in the finish schedule.
INTERIOR SIDE 8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING EXTERIOR SIDE 1/2" GYPSUM SHEATHING 7/8" HPL WALL PANEL ACCENT SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE
