Architectural · A-K8TD7

Roof Planter and Expansion Joint Wall Section

Materials

Concrete Steel Cold-formed Steel Timber / Wood Stone Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Facades / Cladding Roofs Floors / Slabs Decks Expansion / Control Joints Insulation Drainage Site / Paving

Connections

Expansion / Slip Connection

About this detail

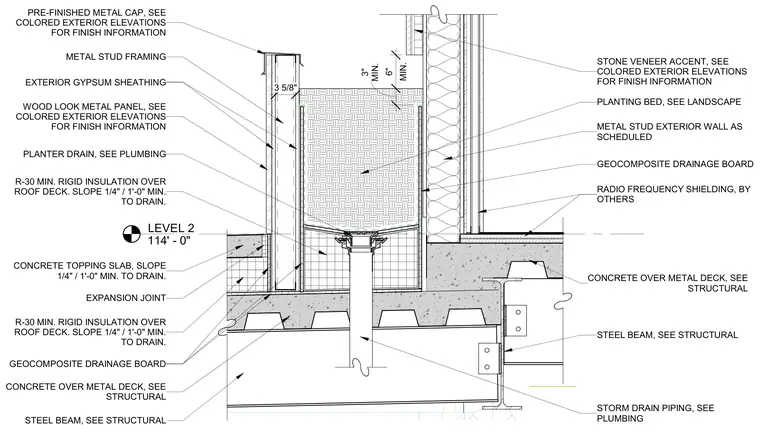

This wall section details a roof planter assembly set adjacent to an exterior wall with metal stud framing and exterior gypsum sheathing. The planter incorporates a pre-finished metal cap, minimum three-inch and six-inch dimensional clearances, a planter drain connected to storm drain piping, and a geocomposite drainage board. Below the planting bed, a concrete topping slab slopes toward the drain at a minimum of one-quarter inch per foot over a concrete over metal deck floor system. An expansion joint separates the planter assembly from the adjacent exterior wall construction. The supporting structure utilizes structural steel beams carrying the concrete and metal deck, with radio frequency shielding installed as indicated.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
