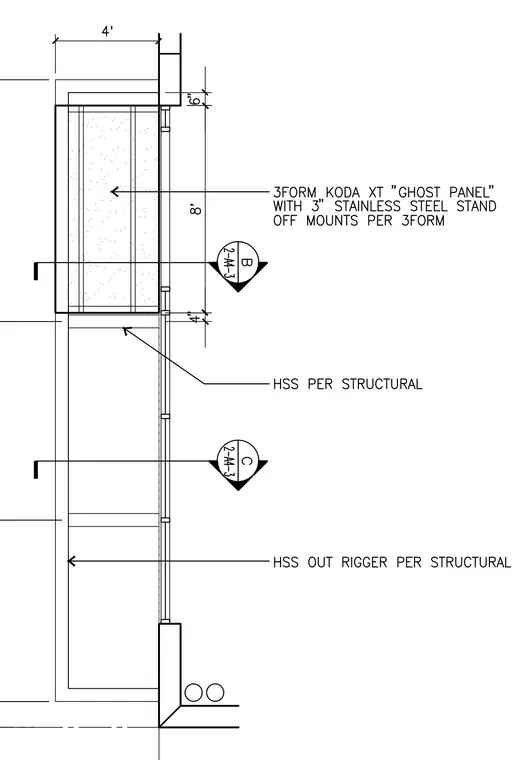

A 3form Koda XT ghost panel attaches via three-inch stainless steel stand off mounts per manufacturer specifications. The panel is supported by hollow structural section framing sized per structural requirements, including an outrigger member extending from the primary assembly. Dimensions establish an eight-foot panel height with specified clearances at the top and bottom.
