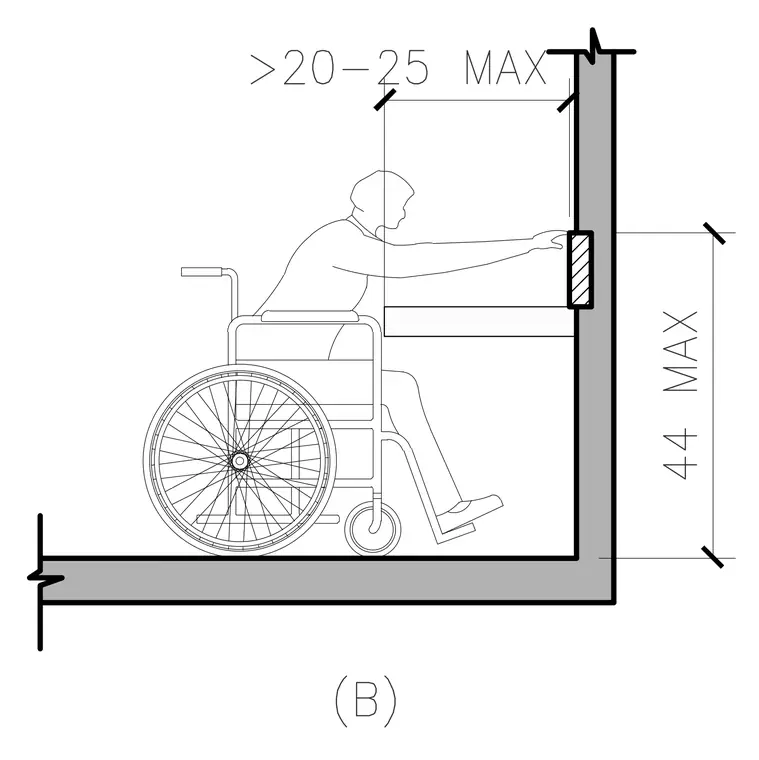

An accessible wheelchair user is positioned at a counter against a wall displaying a mounted device or control element. Vertical dimensions establish the maximum reach and mounting heights relative to the finished floor, including a forty-four inch maximum height to the top of the operable part and a twenty to twenty-five inch maximum forward reach zone.
