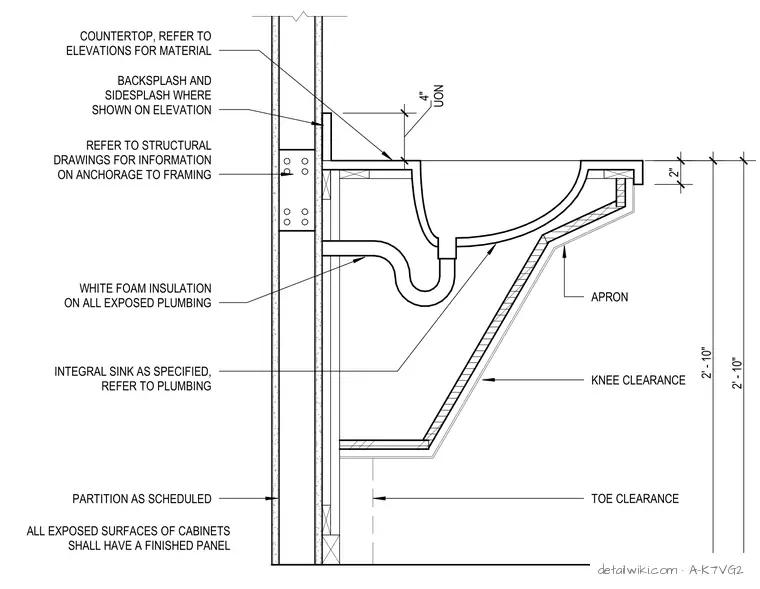

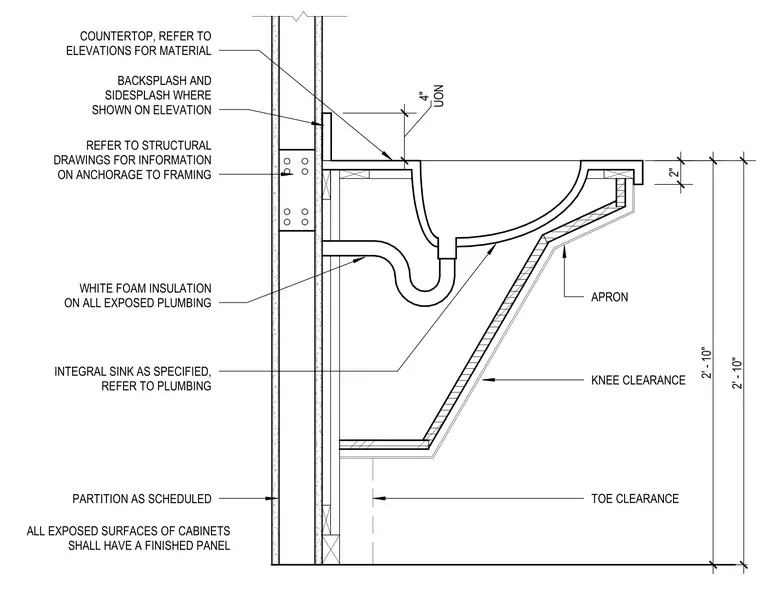

This wall-mounted countertop assembly attaches to a partition wall as scheduled, with structural anchorage to framing determined by the structural drawings. The unit includes an integral sink as specified in the plumbing drawings, with a four-inch backsplash and sidesplash provided where indicated on the elevations. The assembly maintains a two-foot ten-inch height to the top of the counter, incorporating a two-inch apron and designated knee and toe clearances for accessibility. All exposed plumbing beneath the sink is wrapped in white foam insulation. All exposed surfaces of the cabinets are finished with a panel.
Text on the drawing
REFER TO STRUCTURAL DRAWINGS FOR INFORMATION ON ANCHORAGE TO FRAMING PARTITION AS SCHEDULED COUNTERTOP, REFER TO ELEVATIONS FOR MATERIAL UON 4" INTEGRAL SINK AS SPECIFIED, REFER TO PLUMBING 2' - 10" BACKSPLASH AND SIDESPLASH WHERE SHOWN ON ELEVATION ALL EXPOSED SURFACES OF CABINETS SHALL HAVE A FINISHED PANEL 2" 2' - 10" KNEE CLEARANCE TOE CLEARANCE WHITE FOAM INSULATION ON ALL EXPOSED PLUMBING APRON
