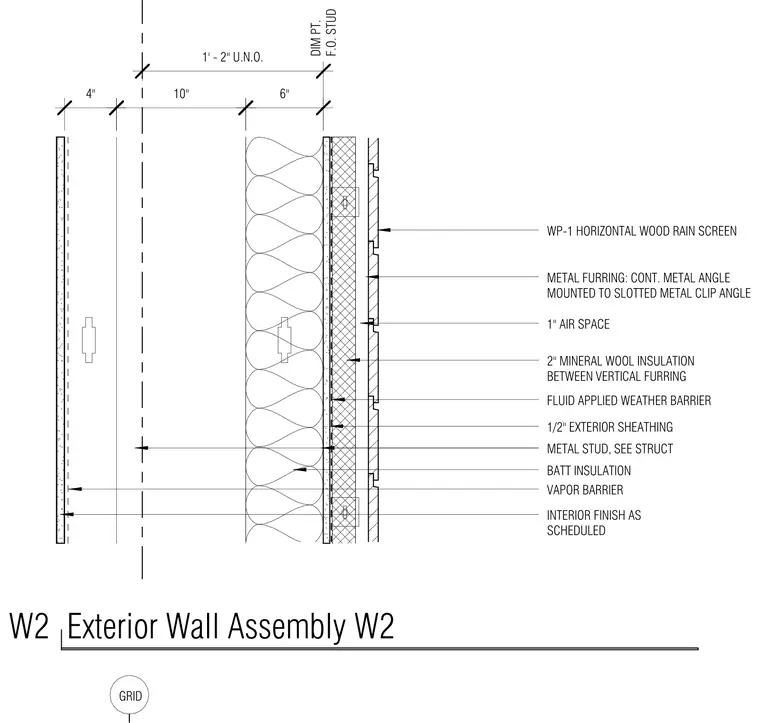

This exterior wall assembly consists of a horizontal wood rain screen designated as WP-1 mounted over a continuous metal angle and slotted metal clip angle system, creating a one-inch air space. Two inches of mineral wool insulation are installed between vertical furring over a fluid-applied weather barrier and one-half-inch exterior sheathing. The backup wall utilizes metal studs sized per structural drawings, filled with batt insulation and faced with a vapor barrier on the warm side, finished with an interior layer as scheduled.
GRID W2 Exterior Wall Assembly W2 1" AIR SPACE FLUID APPLIED WEATHER BARRIER 1/2" EXTERIOR SHEATHING WP-1 HORIZONTAL WOOD RAIN SCREEN 2" MINERAL WOOL INSULATION BETWEEN VERTICAL FURRING METAL FURRING: CONT. METAL ANGLE MOUNTED TO SLOTTED METAL CLIP ANGLE INTERIOR FINISH AS SCHEDULED METAL STUD, SEE STRUCT BATT INSULATION 1' - 2" U.N.O. 4" 10" 6" DIM PT. F.O. STUD VAPOR BARRIER
