Architectural · A-K769B

Railing Transition Between Stair Runs

Materials

Steel Metal (misc.)

Elements

Columns Stairs Railings / Guards Floors / Slabs Connections / Plates

Connections

Base Plate / Anchorage Welded Connection

About this detail

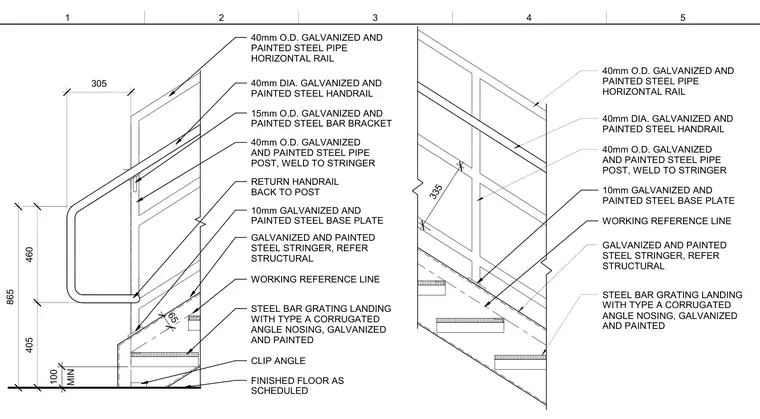

A forty-millimeter outside diameter galvanized and painted steel pipe handrail runs along the stair, returning back to the post near the landing. A forty-millimeter outside diameter galvanized and painted steel pipe post is welded to a ten-millimeter galvanized and painted steel base plate, which connects to the steel stringer. Forty-millimeter outside diameter galvanized and painted steel pipe horizontal rails and fifteen-millimeter outside diameter galvanized and painted steel bar brackets complete the guard assembly. The stair structure features a steel bar grating landing with a type A corrugated angle nosing, supported by galvanized and painted steel stringers referenced to the structural design.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
