Architectural · A-K752K

Swinging Door Maneuvering Clearances and Approach Diagrams

Elements

About this detail

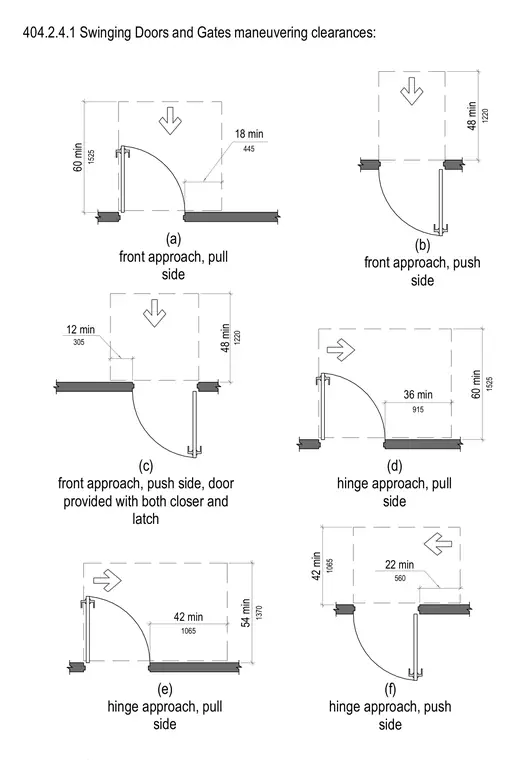

Accessibility compliance diagrams defining minimum maneuvering clearances for swinging doors and gates. The layouts illustrate front approach and hinge approach configurations on both push and pull sides. Minimum dimensions are provided in inches and millimeters for clear floor space perpendicular and parallel to the door opening. Specific variations account for doors equipped with both a closer and a latch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
