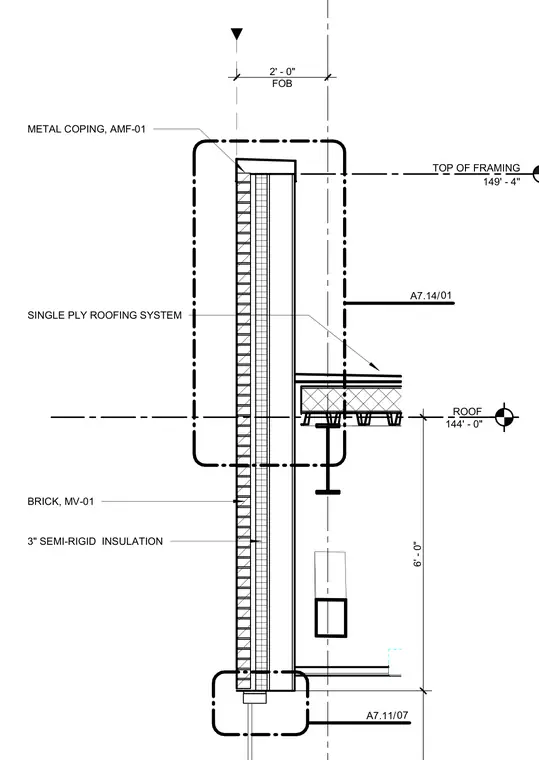

A metal coping designated AMF-01 caps the top of the parapet wall above the top of framing at elevation 149'-4". The exterior facade consists of brick veneer designated MV-01 backed by 3-inch semi-rigid insulation. The single-ply roofing system terminates at the roof level elevation of 144'-0" with a face of brick dimension of 2'-0".
ROOF 144' - 0" 6' - 0" / A7.14 01 / A7.11 07 METAL COPING, AMF-01 FOB 2' - 0" BRICK, MV-01 SINGLE PLY ROOFING SYSTEM 149' - 4" TOP OF FRAMING 3" SEMI-RIGID INSULATION
