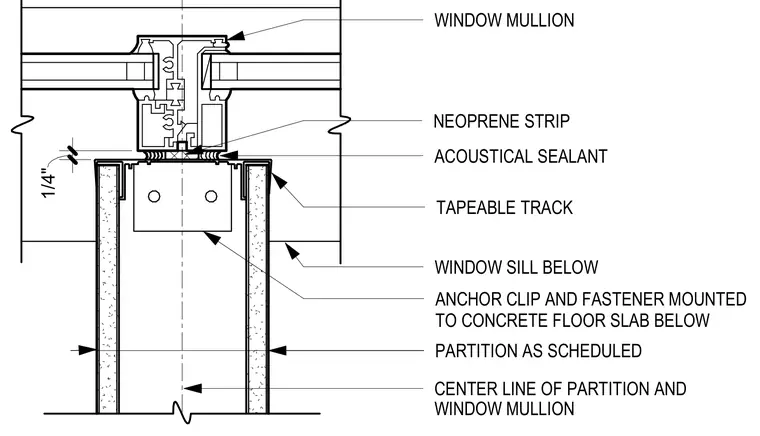

The interior partition terminates at the window mullion with a one-quarter-inch gap maintained between the top track and the window sill below. A tapeable track supports the partition assembly, which is aligned along the centerline of the window mullion. A neoprene strip and acoustical sealant fill the joint between the partition head and the window sill. The partition is secured with an anchor clip and fastener mounted to the concrete floor slab below.
CENTER LINE OF PARTITION AND TO CONCRETE FLOOR SLAB BELOW ANCHOR CLIP AND FASTENER MOUNTED PARTITION AS SCHEDULED WINDOW SILL BELOW TAPEABLE TRACK ACOUSTICAL SEALANT NEOPRENE STRIP WINDOW MULLION WINDOW MULLION 1/4"
