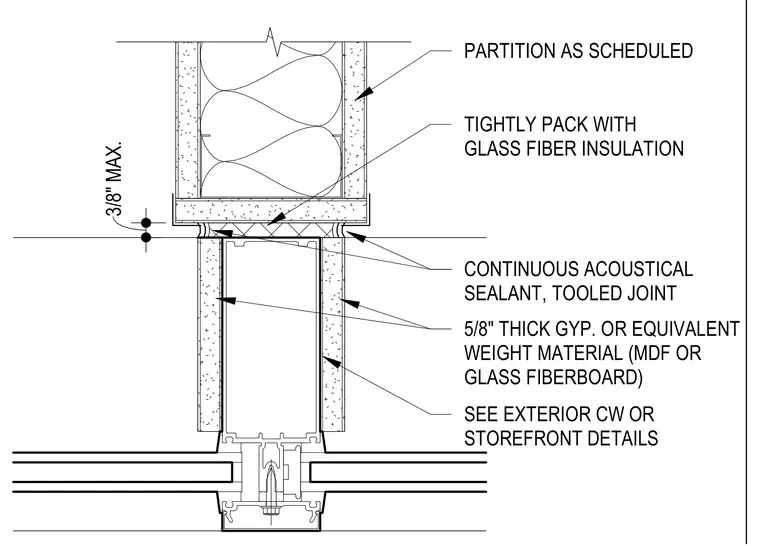

An interior partition as scheduled terminates against a storefront or curtain wall vertical mullion with a maximum three-eighths-inch joint. The gap is tightly packed with glass fiber insulation and sealed continuously on both sides with tooled acoustical sealant. Five-eighth-inch thick gypsum board or equivalent weight material such as medium-density fiberboard or glass fiberboard clads the mullion extension per exterior curtain wall or storefront details.
PARTITION AS SCHEDULED TIGHTLY PACK WITH GLASS FIBER INSULATION SEE EXTERIOR CW OR STOREFRONT DETAILS CONTINUOUS ACOUSTICAL SEALANT, TOOLED JOINT 3/8" MAX. 5/8" THICK GYP. OR EQUIVALENT WEIGHT MATERIAL (MDF OR GLASS FIBERBOARD)
