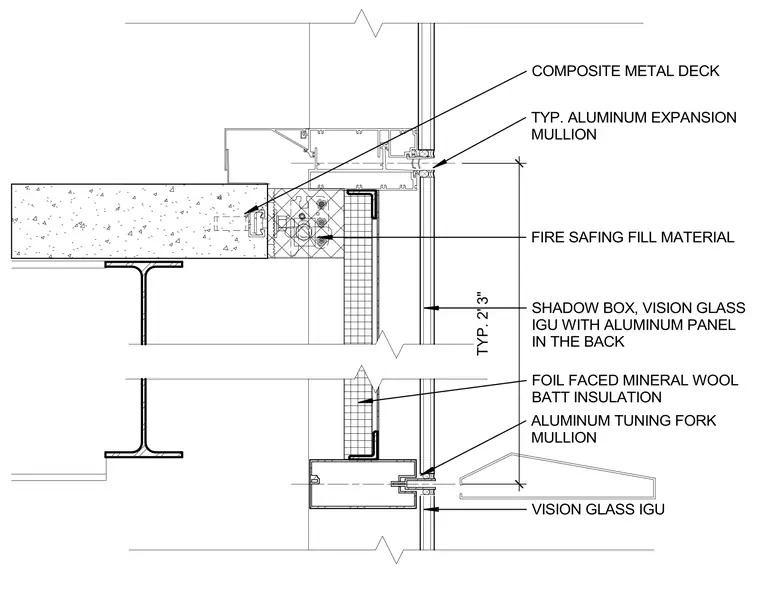

This wall section details the slab edge of a composite metal deck bearing on a structural steel floor beam adjacent to an aluminum curtain wall system. An aluminum expansion mullion and tuning fork mullion frame the vision glass insulated glazing units and shadow box assemblies. Foil-faced mineral wool batt insulation lines the spandrel zone, complemented by fire safing fill material at the floor slab intersection to maintain fire-rated compartmentation.
TYP. 2' 3" COMPOSITE METAL DECK FIRE SAFING FILL MATERIAL TYP. ALUMINUM EXPANSION MULLION ALUMINUM TUNING FORK MULLION SHADOW BOX, VISION GLASS IGU WITH ALUMINUM PANEL IN THE BACK FOIL FACED MINERAL WOOL BATT INSULATION VISION GLASS IGU
