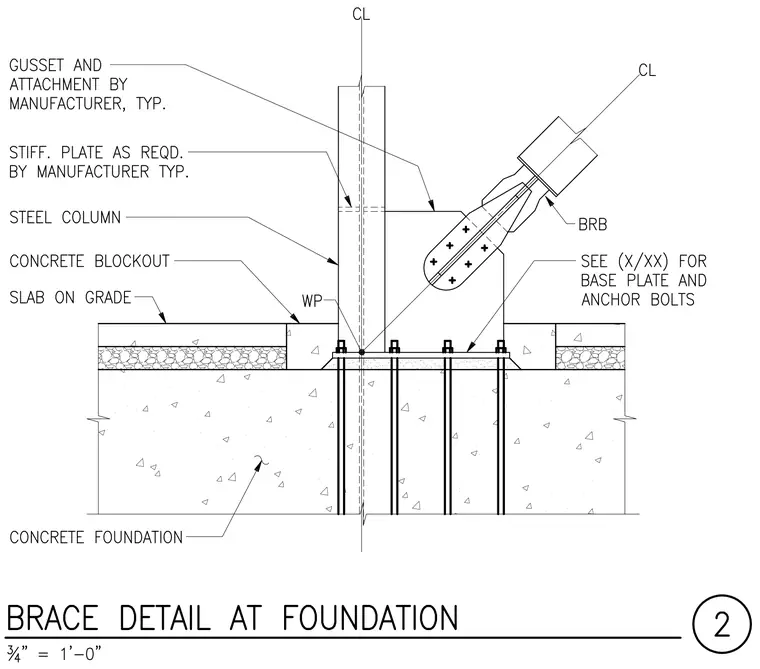

This buckling-restrained brace connects to a structural steel column supported by a base plate anchored to a concrete foundation with multiple anchor rods. A gusset plate and attachment are provided by the manufacturer, with stiffener plates included as required. The steel column passes through a concrete blockout in the slab on grade, meeting the foundation at a designated work point. The base plate and anchor bolts are referenced for specific sizing and detailing on another sheet.
