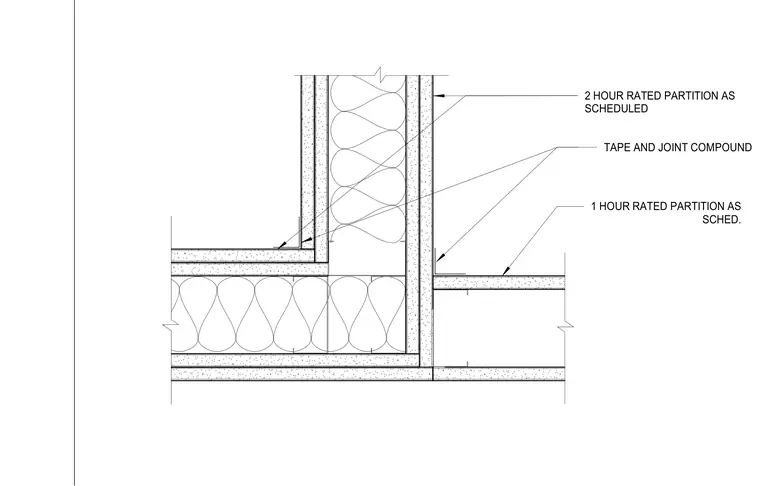

This plan detail shows the intersection between a two-hour rated partition and a one-hour rated partition as scheduled. The wall assemblies are finished with gypsum board and sealed at the internal corners with tape and joint compound. Cavity insulation is provided within the partition framing as required.
2 HOUR RATED PARTITION AS SCHEDULED 1 HOUR RATED PARTITION AS SCHED. TAPE AND JOINT COMPOUND
