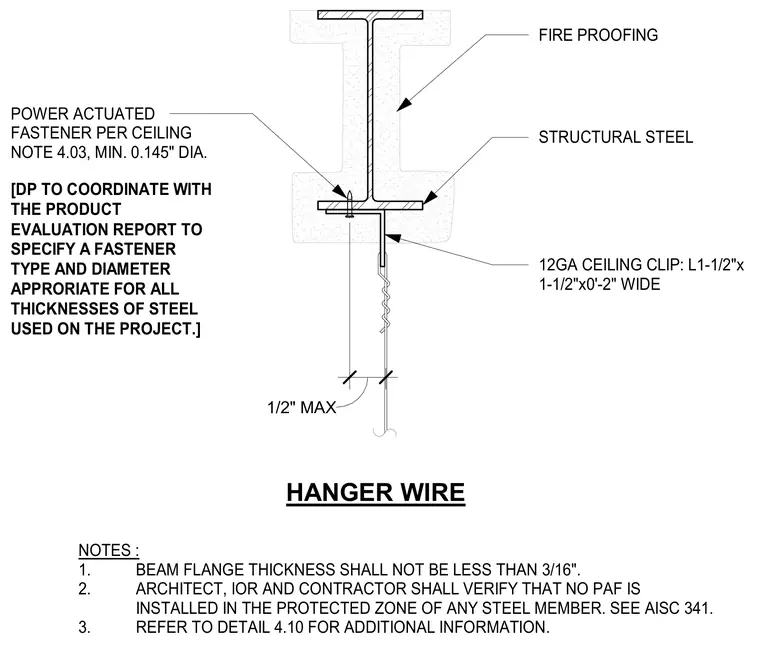

A 12-gauge angle ceiling clip measuring 1-1/2 inches by 1-1/2 inches by 2 inches wide secures a hanger wire to the bottom flange of a structural steel beam. The clip is fastened to the steel beam flange using a half-inch maximum power-actuated fastener with a minimum diameter of 0.145 inches, coordinated per the product evaluation report. The structural steel member is fully encased in spray-applied fireproofing above and around the connection. The beam flange thickness must not be less than 3/16 inch, and power-actuated fasteners are prohibited within the protected zone of any seismic steel member per AISC 341.
12GA CEILING CLIP: L1-1/2"x 1-1/2"x0'-2" WIDE STRUCTURAL STEEL HANGER WIRE FIRE PROOFING NOTES : 1. BEAM FLANGE THICKNESS SHALL NOT BE LESS THAN 3/16". 2. ARCHITECT, IOR AND CONTRACTOR SHALL VERIFY THAT NO PAF IS INSTALLED IN THE PROTECTED ZONE OF ANY STEEL MEMBER. SEE AISC 341. 3. REFER TO DETAIL 4.10 FOR ADDITIONAL INFORMATION. 1/2" MAX POWER ACTUATED FASTENER PER CEILING NOTE 4.03, MIN. 0.145" DIA. [DP TO COORDINATE WITH THE PRODUCT EVALUATION REPORT TO SPECIFY A FASTENER TYPE AND DIAMETER APPRORIATE FOR ALL THICKNESSES OF STEEL USED ON THE PROJECT.]
