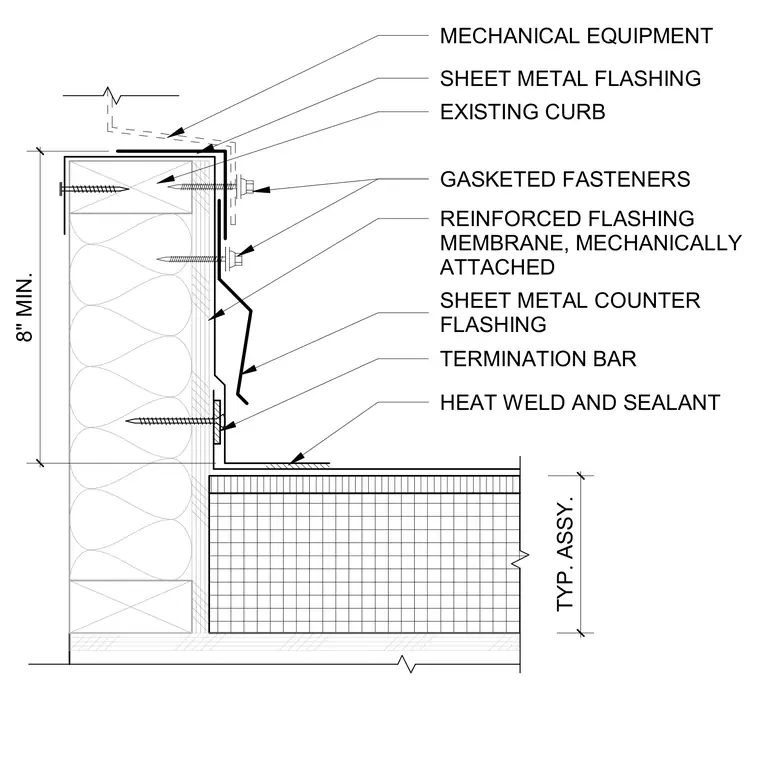

An existing mechanical curb features a minimum eight-inch vertical flashing height covered by sheet metal flashing at the top. A reinforced flashing membrane is mechanically attached to the curb side using gasketed fasteners. A sheet metal counter flashing extends down over the membrane termination and is secured with a termination bar. The base of the flashing membrane is sealed with a heat weld and sealant against the typical roof assembly.
HEAT WELD AND SEALANT EXISTING CURB SHEET METAL COUNTER FLASHING TYP. ASSY. REINFORCED FLASHING MEMBRANE, MECHANICALLY ATTACHED GASKETED FASTENERS TERMINATION BAR MECHANICAL EQUIPMENT 8" MIN. SHEET METAL FLASHING
