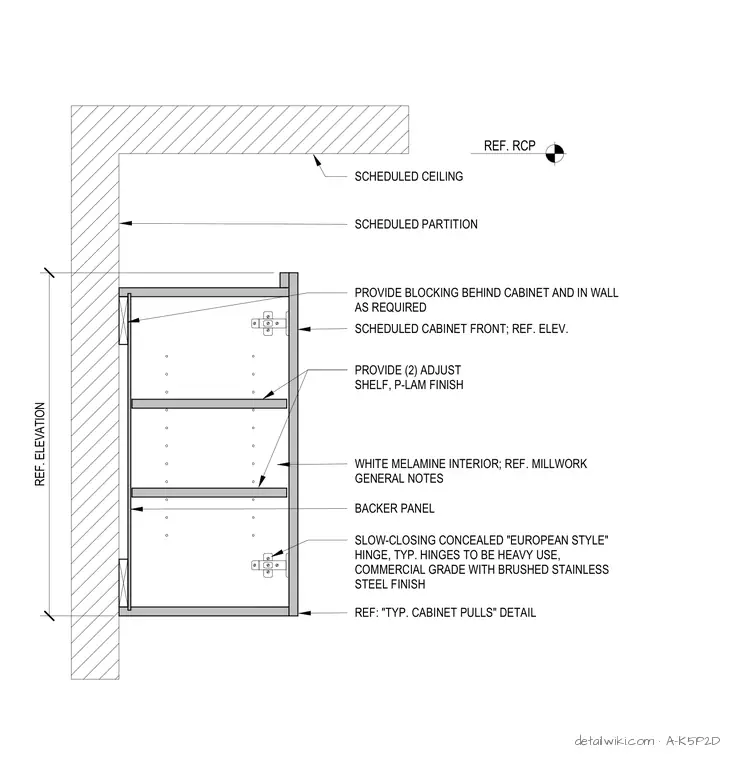

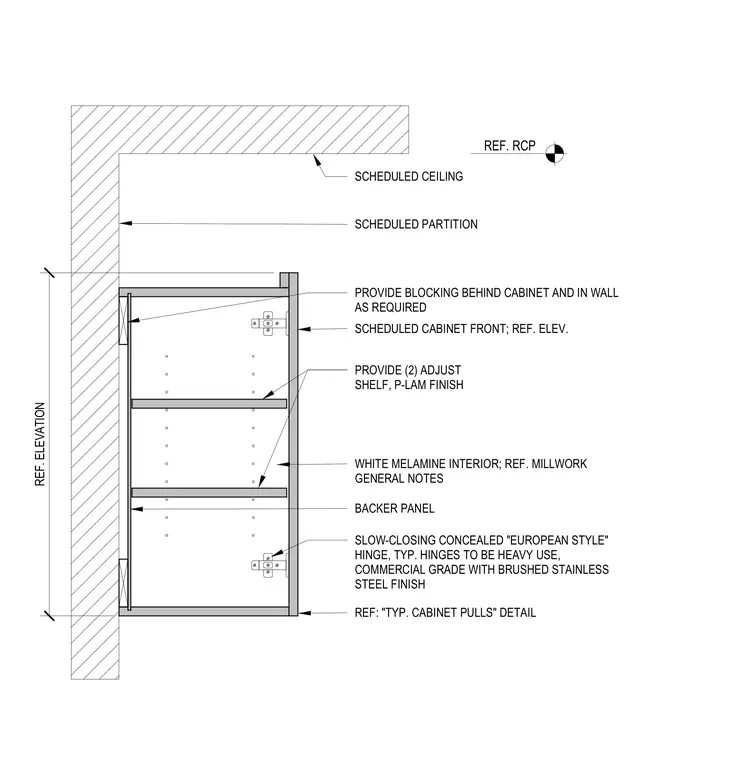

The upper cabinet secures to a scheduled partition wall via required blocking installed within the wall cavity. The cabinet interior features a white melamine finish and a backer panel, with two adjustable shelves finished in plastic laminate. The cabinet front utilizes slow-closing, concealed European-style hinges of commercial-grade quality with a brushed stainless steel finish. Cabinet pulls install per the typical cabinet pulls detail, and the assembly positions relative to the scheduled ceiling and reflected ceiling plan.
Text on the drawing
BACKER PANEL REF: "TYP. CABINET PULLS" DETAIL SCHEDULED PARTITION WHITE MELAMINE INTERIOR; REF. MILLWORK GENERAL NOTES SCHEDULED CABINET FRONT; REF. ELEV. SLOW-CLOSING CONCEALED "EUROPEAN STYLE" HINGE, TYP. HINGES TO BE HEAVY USE, COMMERCIAL GRADE WITH BRUSHED STAINLESS STEEL FINISH PROVIDE (2) ADJUST SHELF, P-LAM FINISH SCHEDULED CEILING REF. ELEVATION REF. RCP PROVIDE BLOCKING BEHIND CABINET AND IN WALL AS REQUIRED
