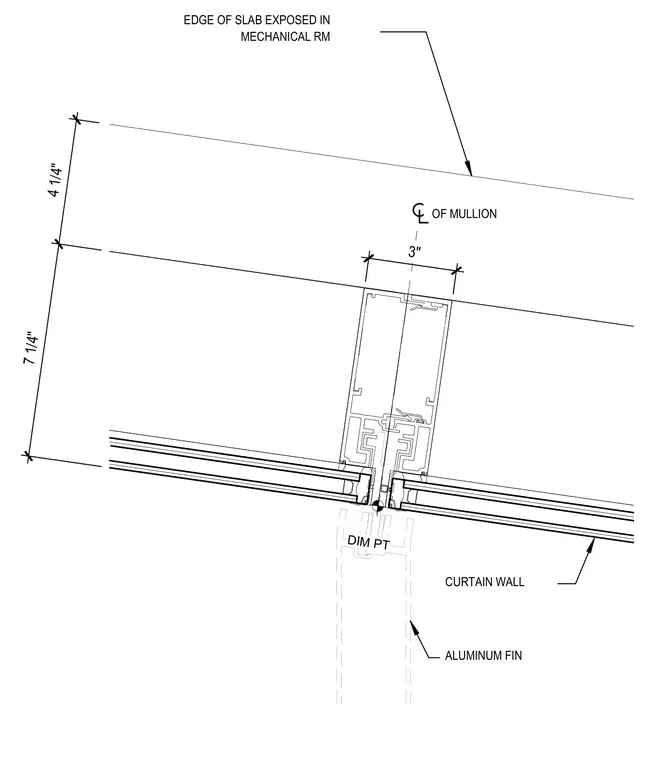

This plan detail shows an aluminum curtain wall mullion intersecting an exposed concrete slab edge at an 81.87-degree angle in a mechanical room. The centerline of the mullion is offset three inches from the slab edge, with a 7-1/4 inch dimension to the dimension point and a 4-1/4 inch dimension to the slab edge. An exterior aluminum fin projects from the mullion at the dimension point.
DIM PT CURTAIN WALL 3 " EDGE OF SLAB EXPOSED IN MECHANICAL RM 7 1 / 4 " 4 1 / 4 " OF MULLION ALUMINUM FIN
