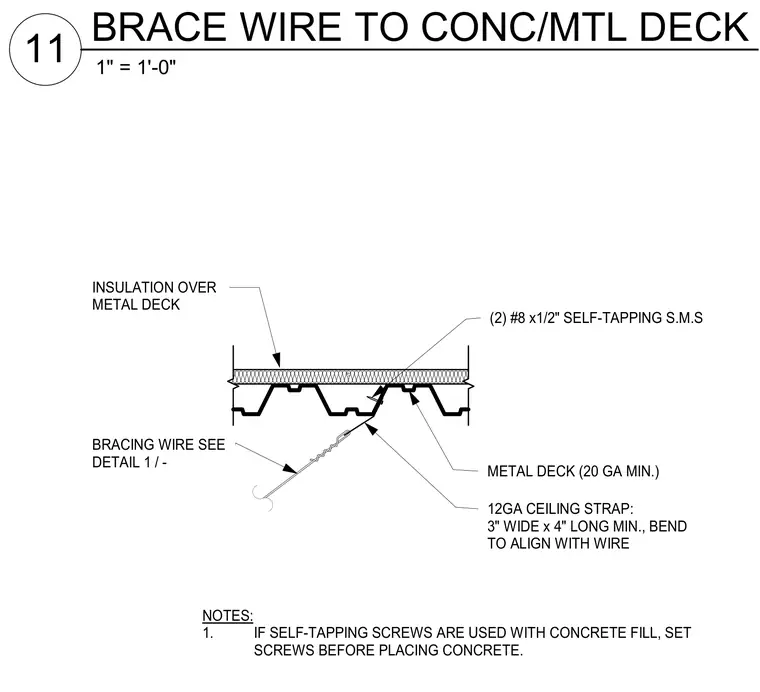

A twelve-gauge ceiling strap, measuring three inches wide by four inches long minimum and bent to align with the wire, is fastened to the underside of a twenty-gauge minimum metal deck using two number eight by one-half inch self-tapping sheet metal screws. Insulation is installed over the metal deck. A bracing wire connects to the ceiling strap assembly. If self-tapping screws are used with concrete fill, the screws must be set before placing concrete.
NOTES: 1. IF SELF-TAPPING SCREWS ARE USED WITH CONCRETE FILL, SET SCREWS BEFORE PLACING CONCRETE. METAL DECK (20 GA MIN.) (2) #8 x1/2" SELF-TAPPING S.M.S 12GA CEILING STRAP: 3" WIDE x 4" LONG MIN., BEND TO ALIGN WITH WIRE INSULATION OVER METAL DECK BRACING WIRE SEE DETAIL 1 / - 1" = 1'-0" 11 BRACE WIRE TO CONC/MTL DECK
